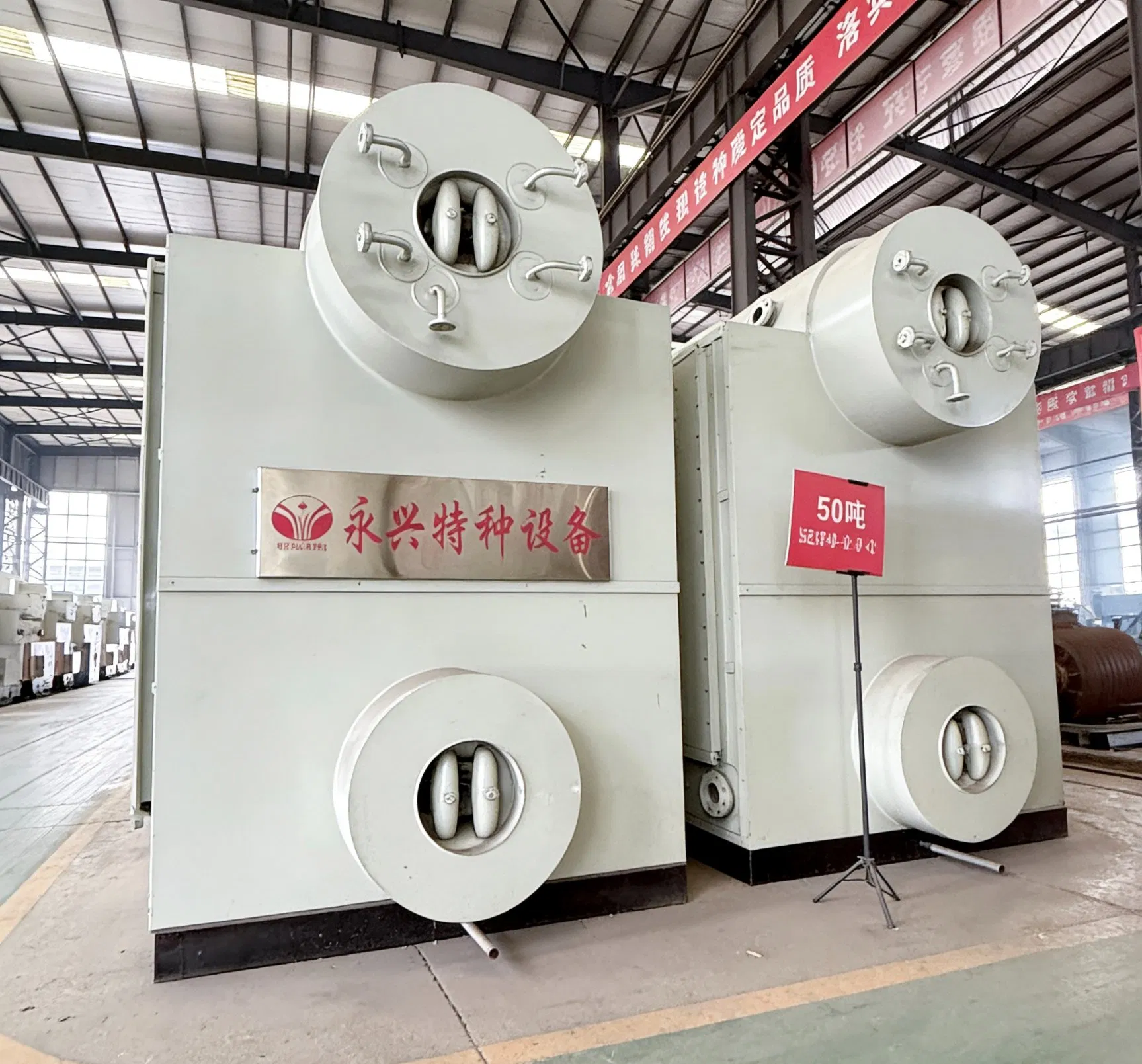

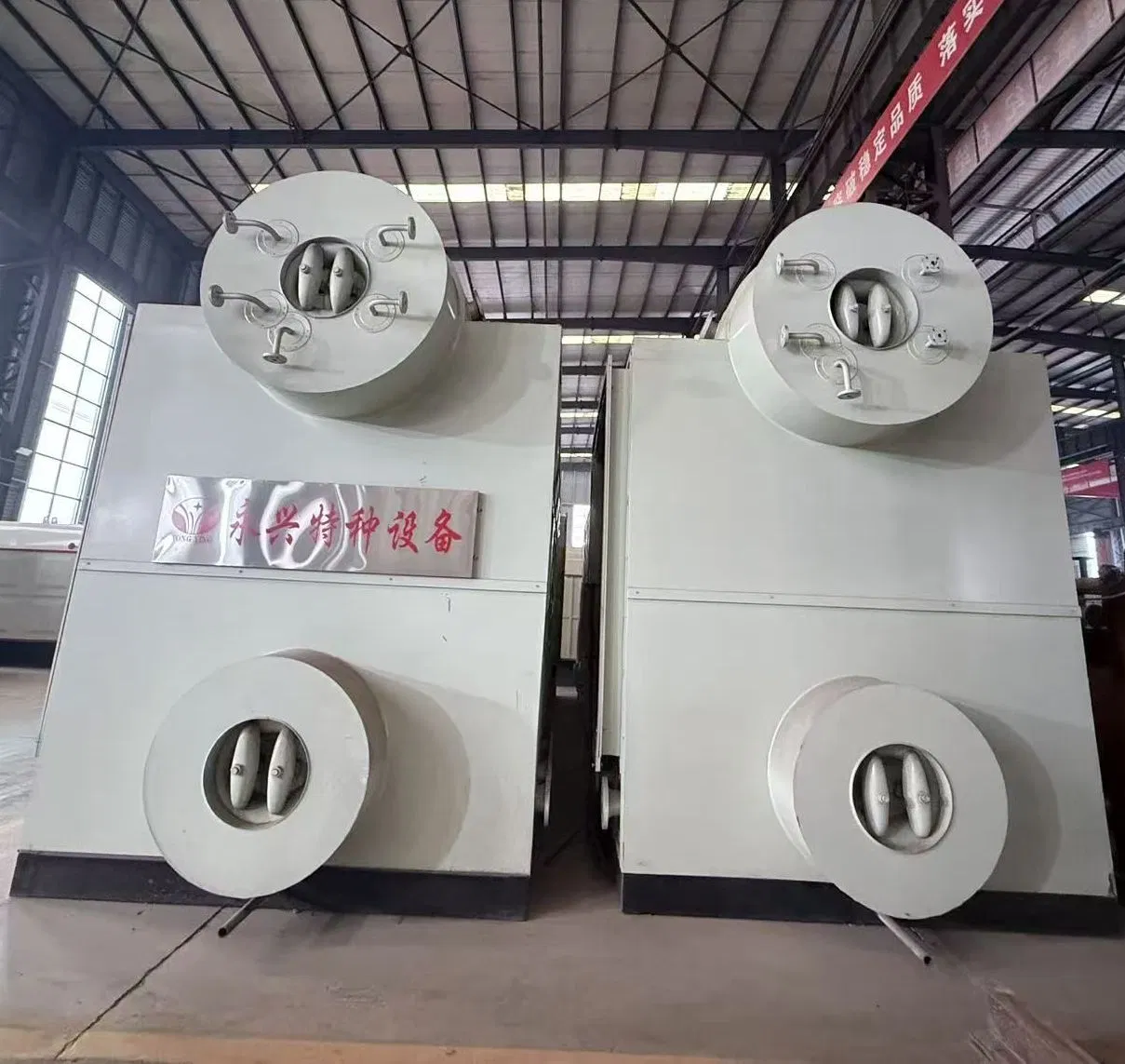

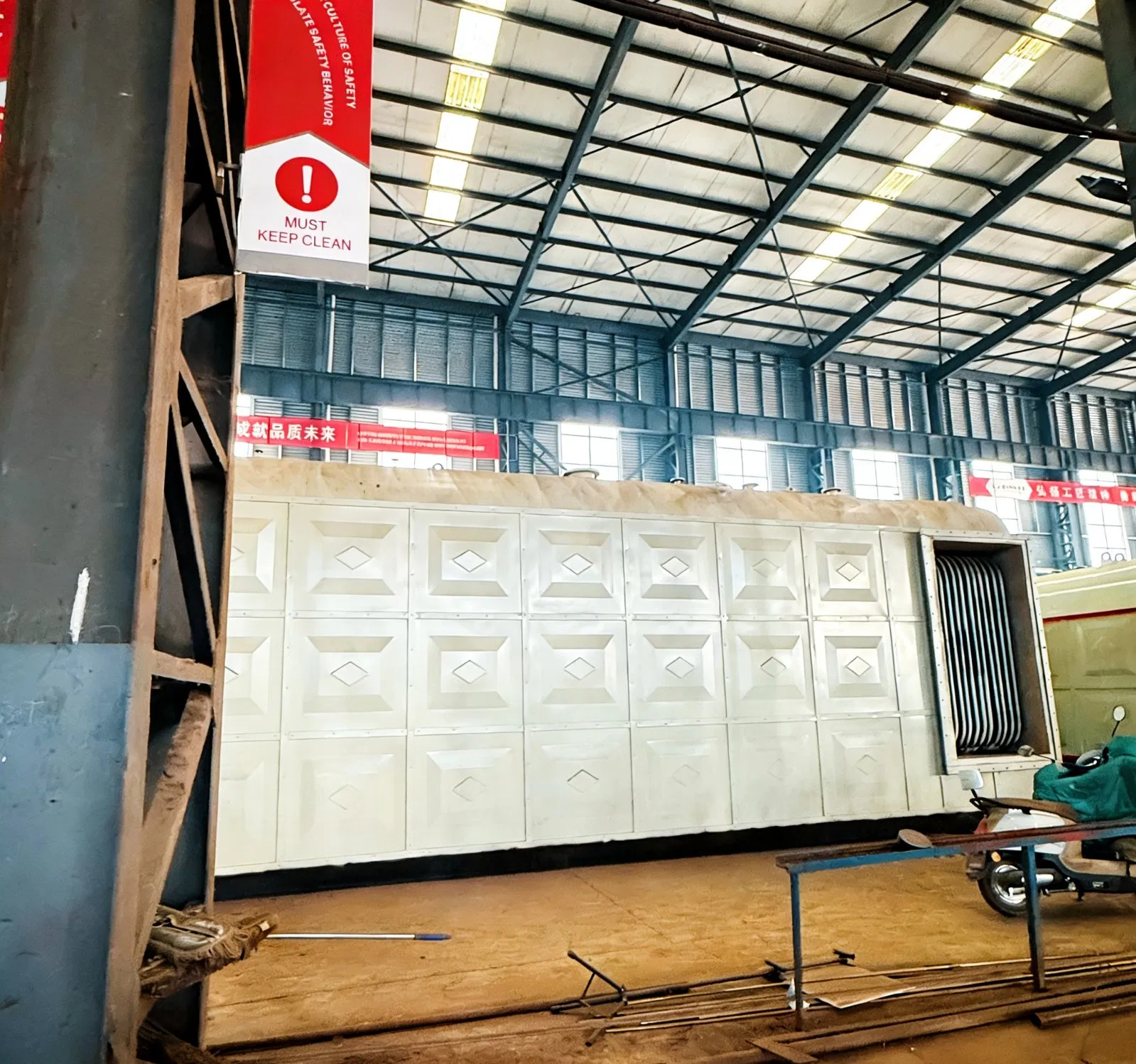

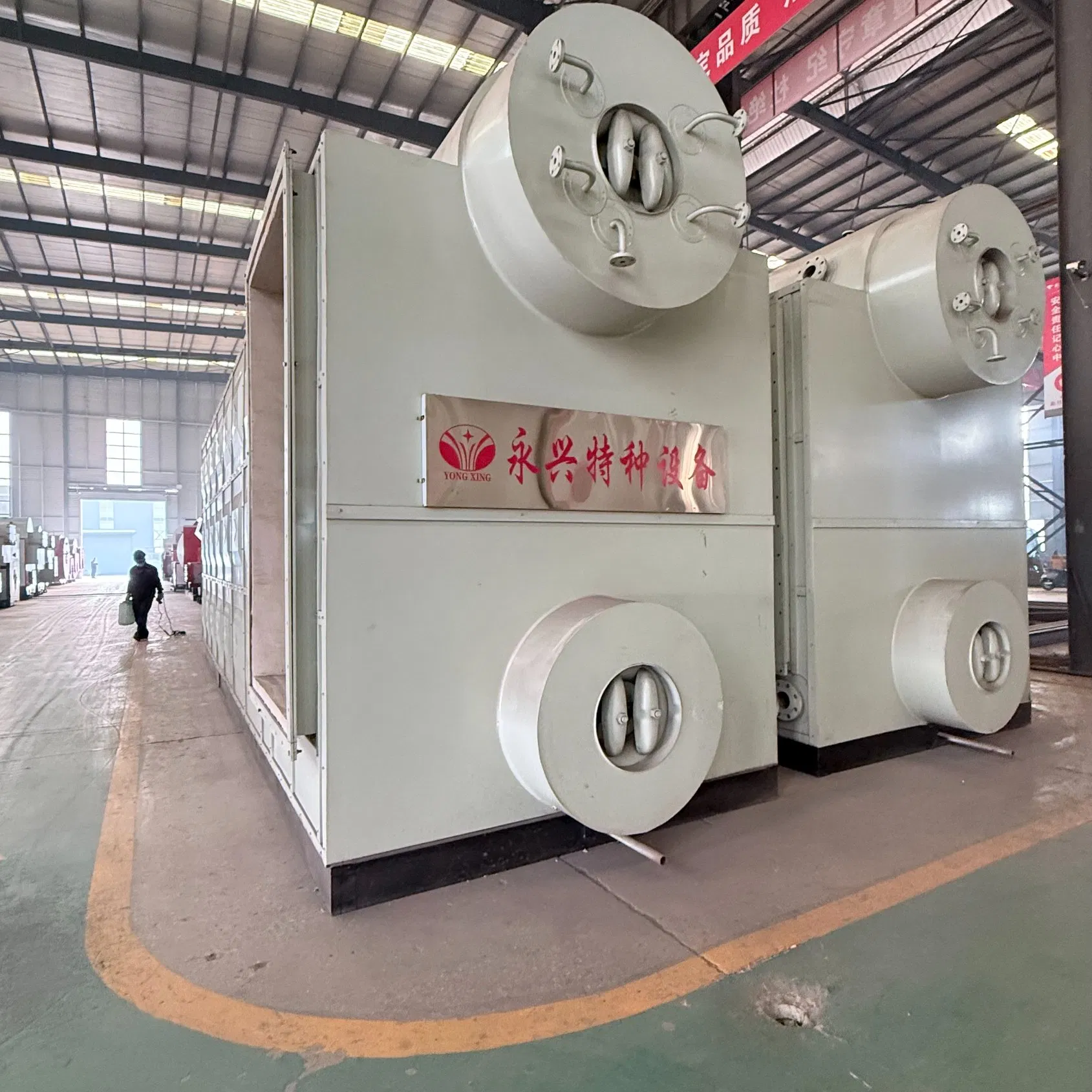

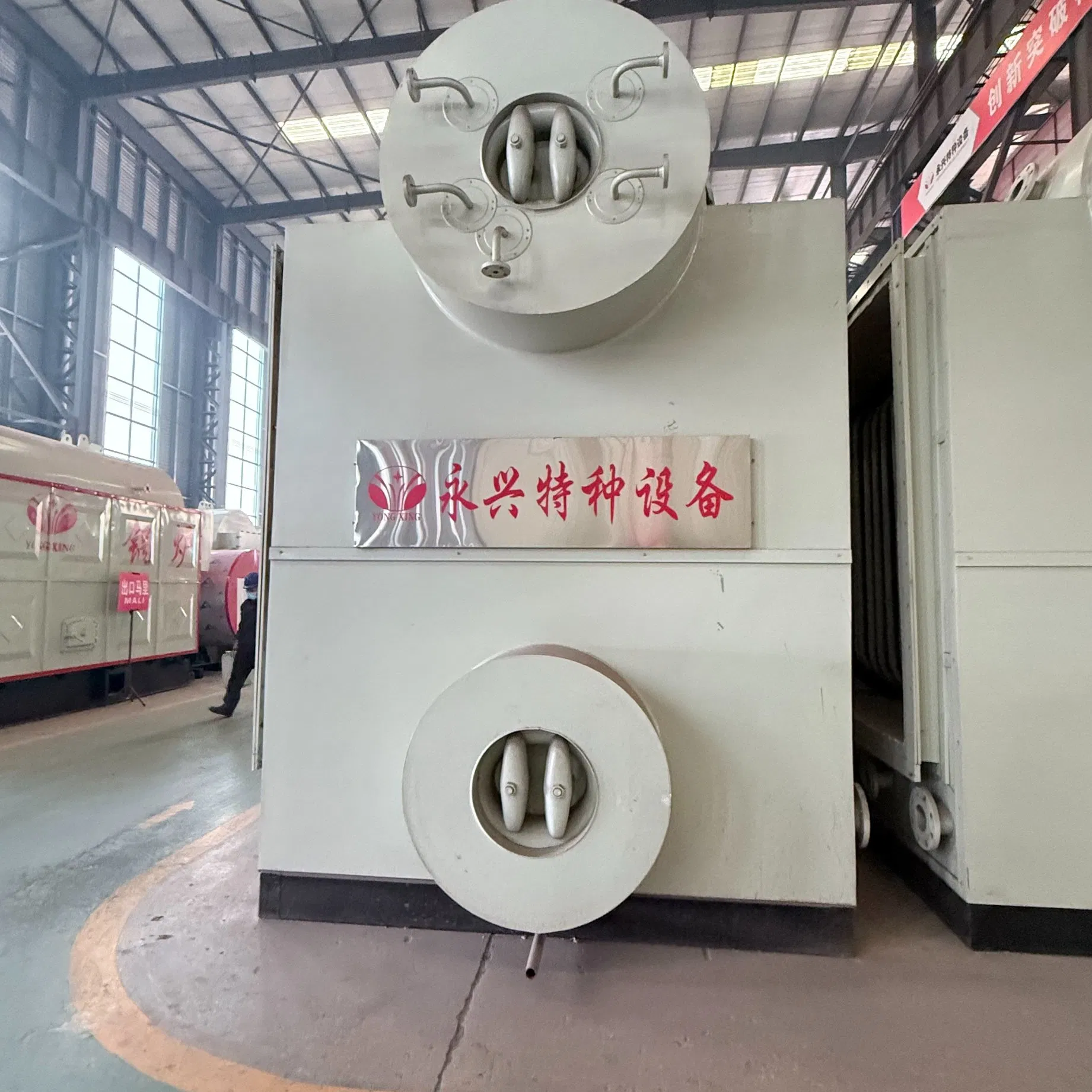

Szs Double Drum Gas Steam Boiler for Factory Production Heating

Customization:	Available
Function:	Water Boiler, Steam Boilers, Hot Water Boiler
Fuel:	Oil/Gas Fired

1

Overview & Basic Info

Model: SZS

Installation: Packaged Boiler

Structure: Water Tube

Media: Steam

Water Circulation: Natural Circulation

Pressure: High Pressure

Material: Stainless Steel

Capacity: 36000kg

2

Product Introduction

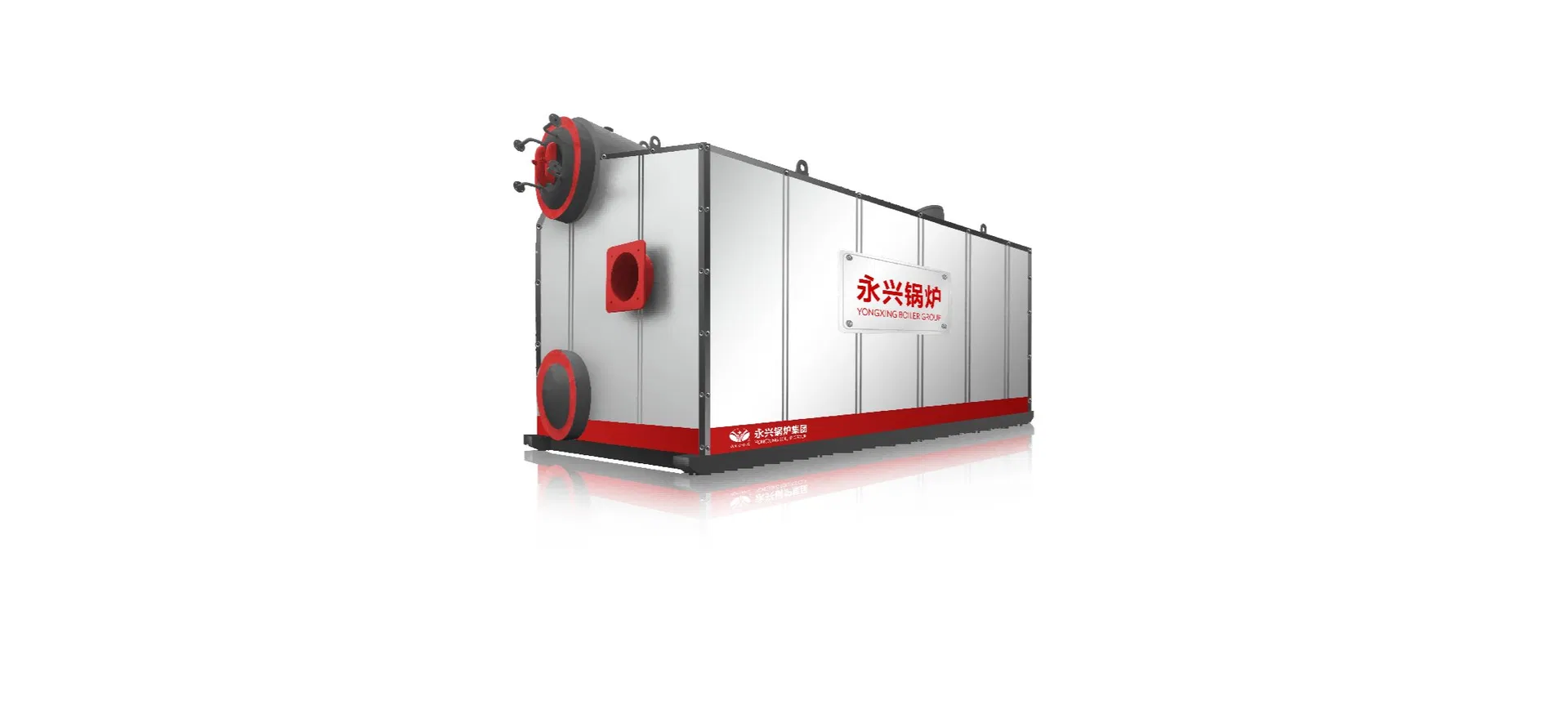

The SZS gas/oil double-drum horizontal type chamber combustion boiler consists of upper and lower drums, membrane water wall, burner, superheater, convection pipe bundle, condenser, and dirt separator. Its furnace water wall and convection flue adopt a membrane wall structure, saving refractory bricks.

With advantages such as energy-saving, high efficiency, and environmentally friendly operation, it features a short installation cycle and simple operation. It is ideal for industrial heating and small power station supply needs.

Technical Features

The application of the economizer and condenser reduces the exhaust gas temperature and improves thermal efficiency, significantly reducing fuel consumption. It is a quick-assembled or bulk water tube boiler with a convection tube bundle on the left and a chamber on the right.

3

Technical Specifications

Boiler Model		SZS10	SZS15	SZS20	SZS25	SZS30	SZS35
Rated Steam Capacity	T/H	10	15	20	25	30	35
Rated Steam Pressure	Mpa	1.25 / 1.6 / 2.5 / 3.82
Steam Temperature	℃	194 / 204 / 226 / 450
Thermal Efficiency	%	>98%
Fuel Type	Light Diesel Oil / Natural Gas / HFO / LPG / City Gas
Gas Consumption	Nm3/h	660	987	1316	1660	1981	2630

4

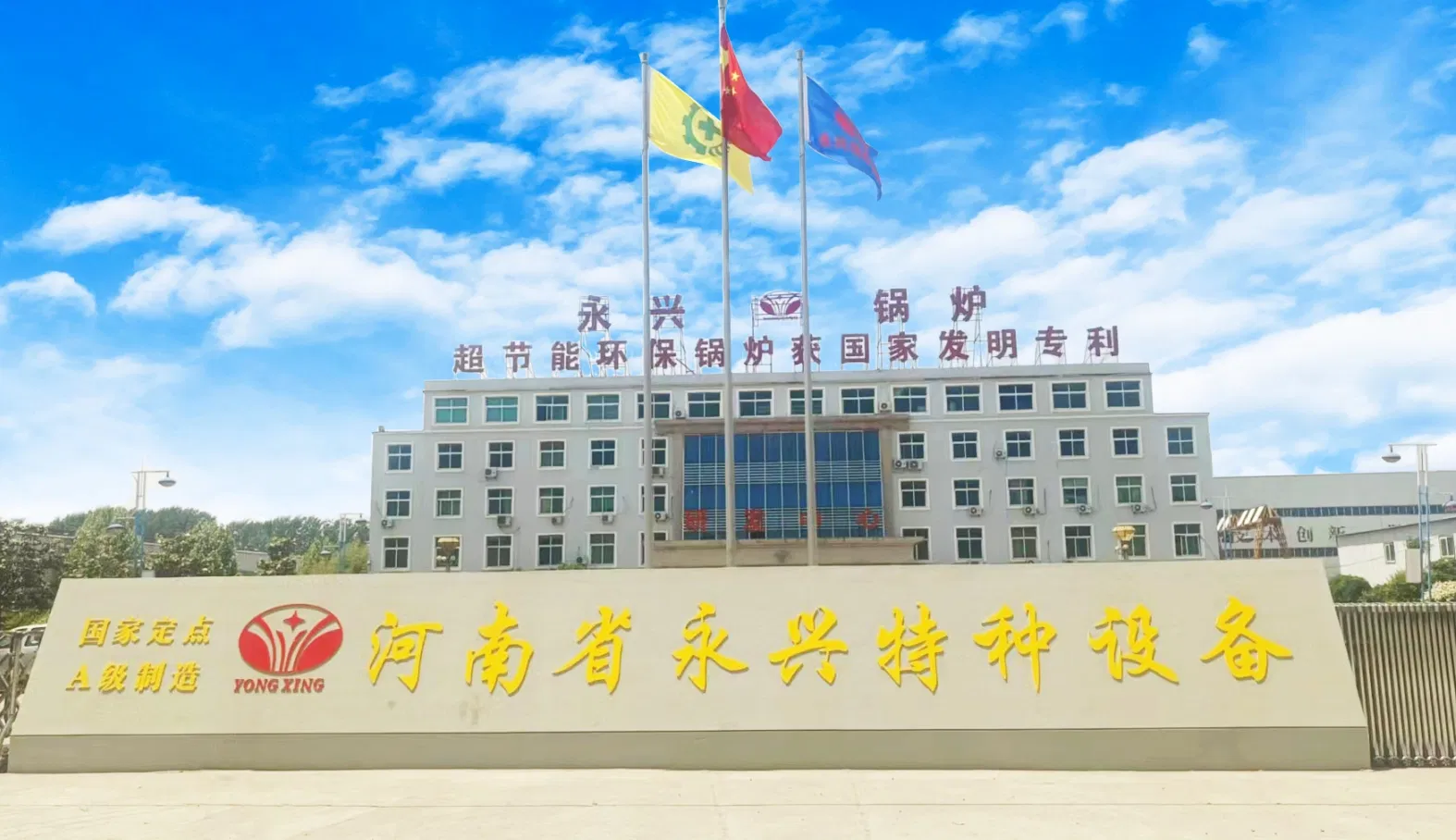

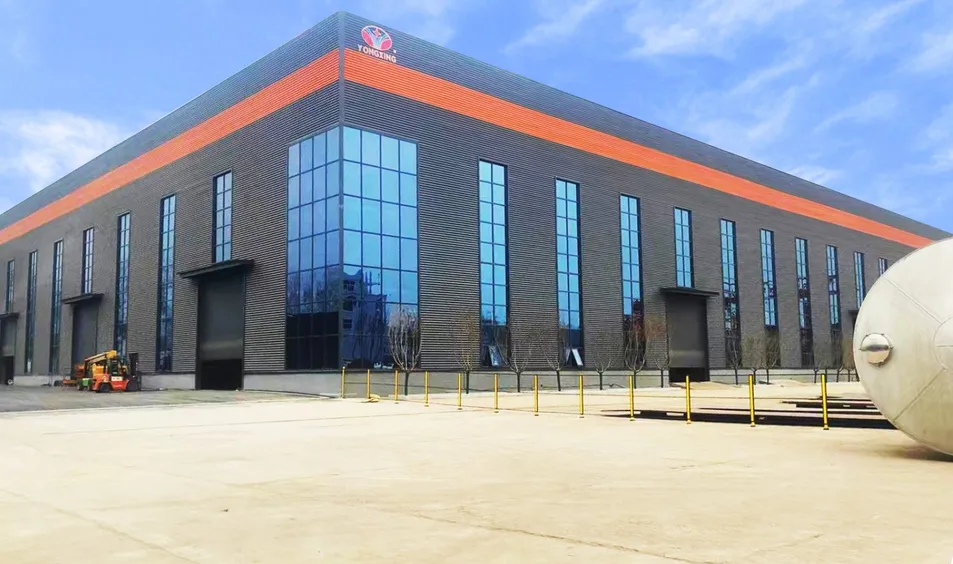

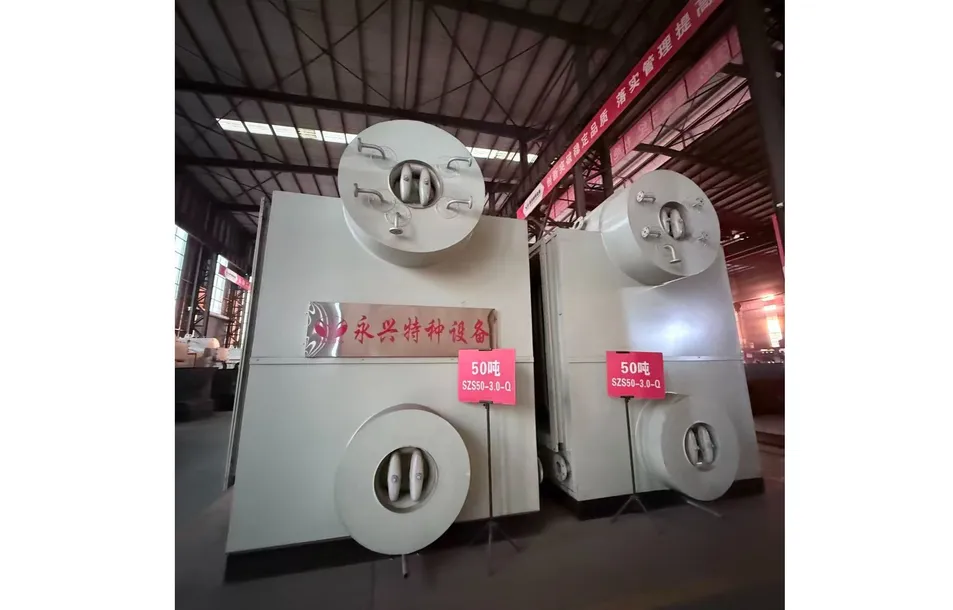

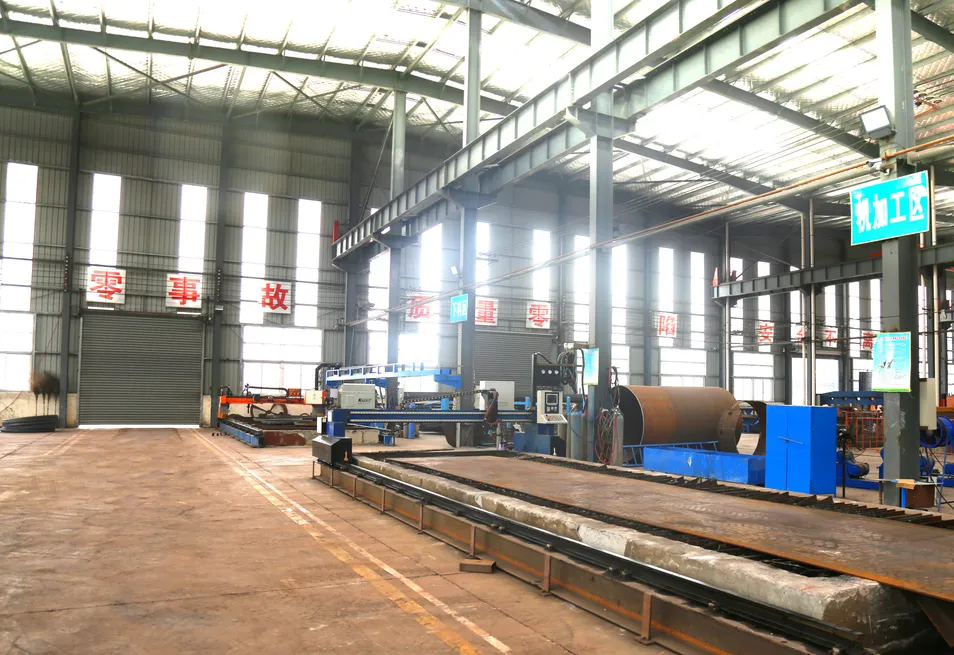

Manufacturing & Global Presence

Our Exhibition

5

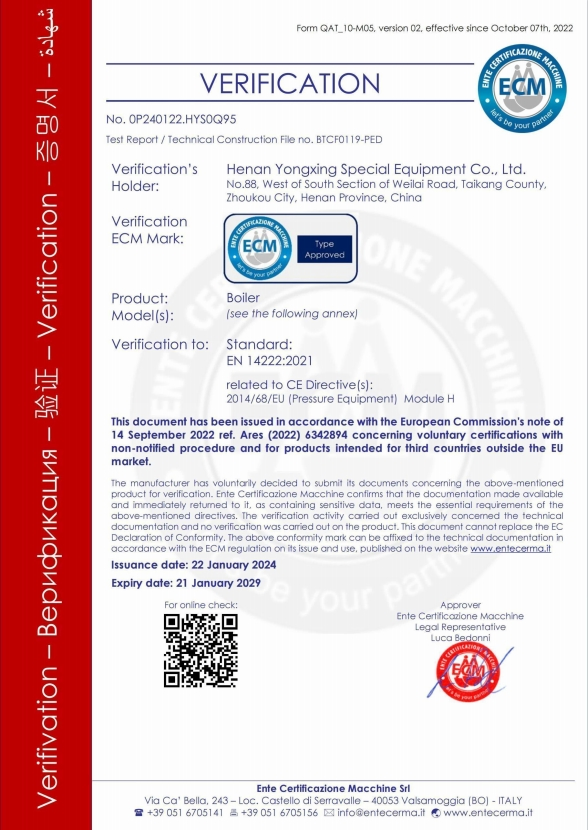

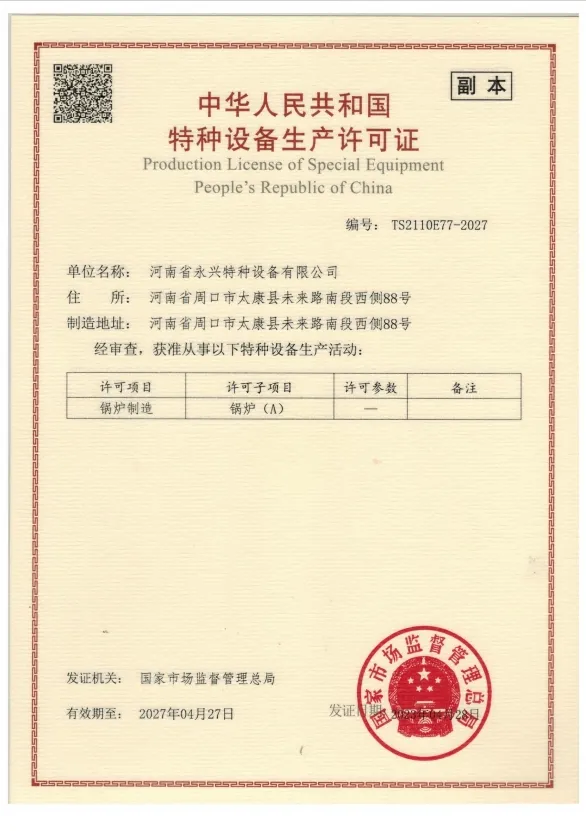

Qualifications & Honors

?

Frequently Asked Questions

Q1: What are the primary types of industrial boilers available?

We offer a wide range of industrial series, including steam boilers, hot water boilers, and heat-conducting oil boilers, suitable for chemical, textile, and food processing industries.

Q2: What international standards do the boilers comply with?

All products follow strict safety regulations and hold ISO9001 quality management certification and CE certification to ensure global reliability.

Q3: What is the typical delivery timeframe for a new boiler?

Boilers under 15 tons are delivered within 15 days, 15-25 ton units in 20 days, and larger units (25 tons+) in approximately 35 days.

Q4: What fuels can be used with the SZS series boilers?

The SZS series is highly versatile and can run on Natural Gas, Light Diesel Oil, Heavy Fuel Oil (HFO), LPG, and City Gas.

Q5: Do you provide support for international exports?

Yes, we provide full certification sets (CE, ASME, etc.), handle sea freight booking, and support various trade terms like FOB and CIF.

Q6: What maintenance is required for daily operation?

Regular checks on water levels, pressure, and temperature are essential. Timely cleaning of internal scale and flue pipe ash ensures longevity and efficiency.
