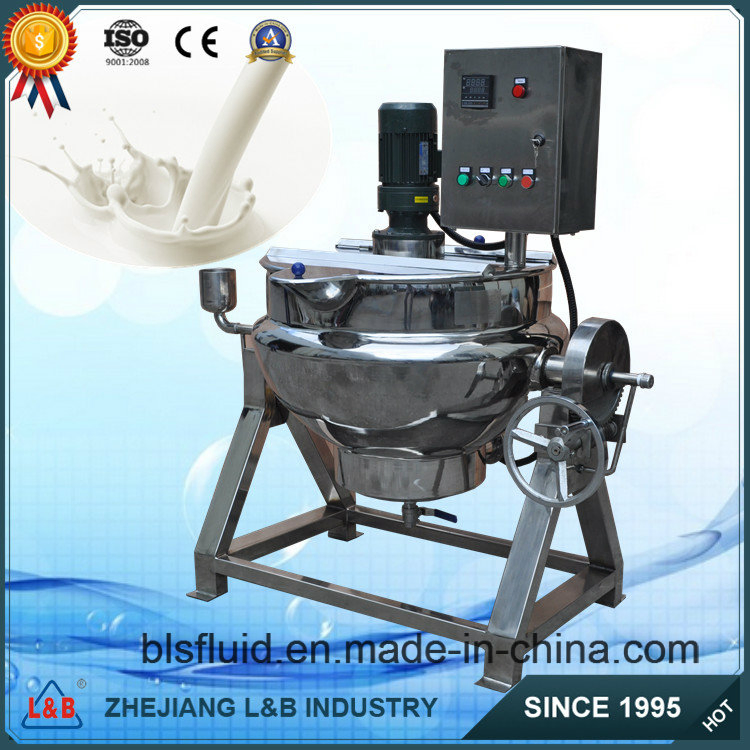

■ BLS Double Jacketed Boiler & Electric Cooking Boiler
✓
Standard: Designed according to GMP standard for safety and hygiene.
✓
Application: Widely used in food-processing, cosmetics, and pharmaceutical industries.
✓
Material: High-quality SS304 or SS316L stainless steel construction.
✓
Heating Method: Versatile options including electricity (oil/water), steam, or gas.
| Product Specification |
Details |
| Capacity Range | 50L - 1000L |
| Construction | Kettle, bracket, worm wheel and worm, etc. |
| Agitator Type | Equipped with PTFE scraper for efficient mixing |
| Mechanical Seal | SIC/SiC/EPDM (Standard) |
| Voltage | 110V - 480V |
| Motor Brands | Siemens, ABB, or Local (50Hz / 60Hz) |
| Surface Treatment | High-precision inner and outside polished finish |
| Available Connections | Clamp, Thread, Butt weld, Flange |
| Standard Compliance | DIN, SMS, 3A, RJT, ISO/IDF |
■ Technical Parameters (JCG Series)
| Model |
Volume (L) |
Form |
Pressure (MPa) |
Speed (r/min) |
Heating Power |
| JCG-50 | 50 | Tilting/Stirring | 0.3 | 36 | 0.75kw / 8kw |
| JCG-100 | 100 | Tilting/Fixed | 0.3 | 36 | 0.75kw / 12kw |
| JCG-200 | 200 | Tilting/Fixed | 0.3 | 36 | 1.5kw / 15kw |
| JCG-300 | 300 | Tilting/Fixed | 0.3 | 36 | 1.5kw / 15kw |
| JCG-400 | 400 | Tilting/Fixed | 0.3 | 36 | 1.5kw / 18kw |
| JCG-500 | 500 | Tilting/Fixed | 0.3 | 23 | 2.2kw / 18kw |
| JCG-600 | 600 | Tilting/Fixed | 0.3 | 23 | 2.2kw / 24kw |
| JCG-1000 | 1000 | Tilting/Fixed | 0.3 | 23 | 3.7kw / 30kw |
■ Evaporation Parameters (QJ Series)
| Model |
Volume |
Pressure |
Heating Area (㎡) |
Energy |
| QJ50 | 50 | <0.2 Mpa | 0.4 | 33 |
| QJ100 | 100 | <0.2 Mpa | 0.45 | 44 |
| QJ200 | 200 | <0.2 Mpa | 1.0 | 72 |
| QJ300 | 300 | <0.2 Mpa | 1.15 | 90 |
| QJ500 | 500 | <0.2 Mpa | 1.9 | 165 |

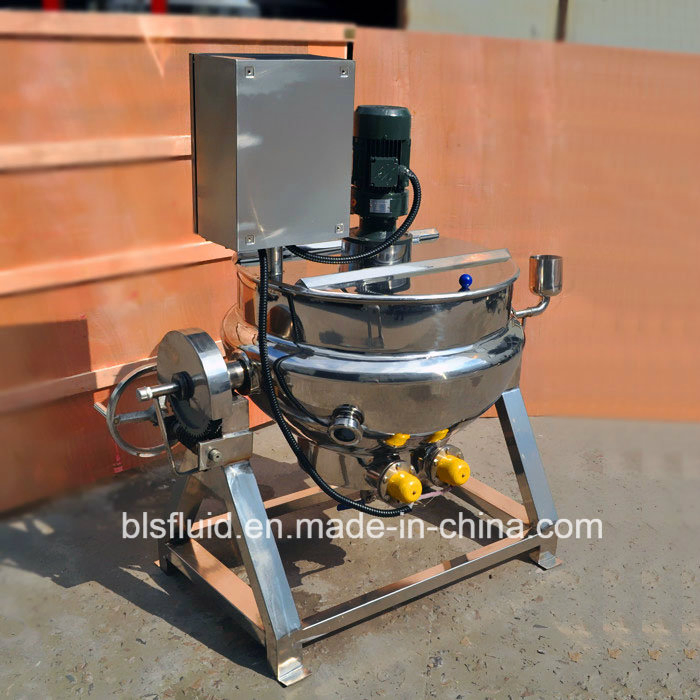

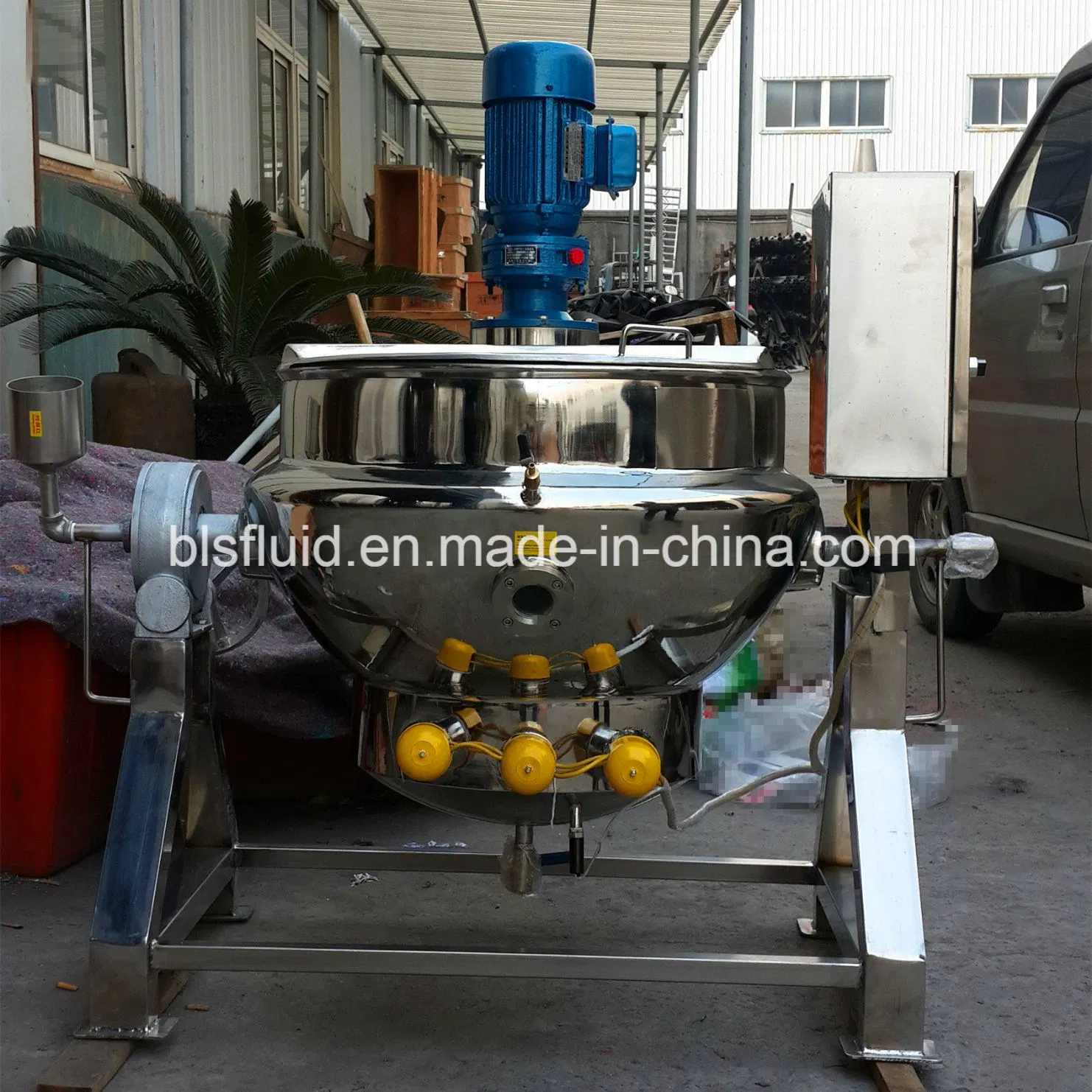

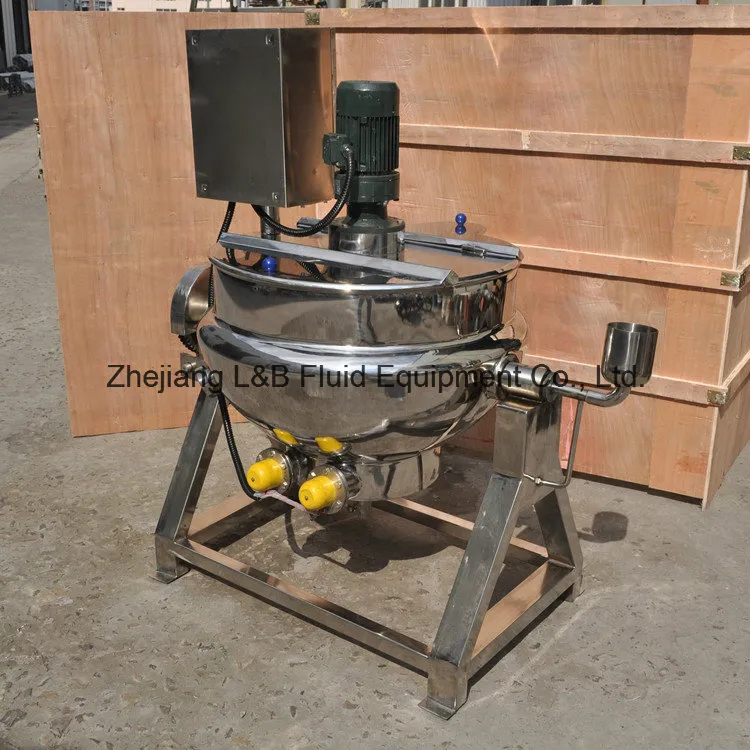

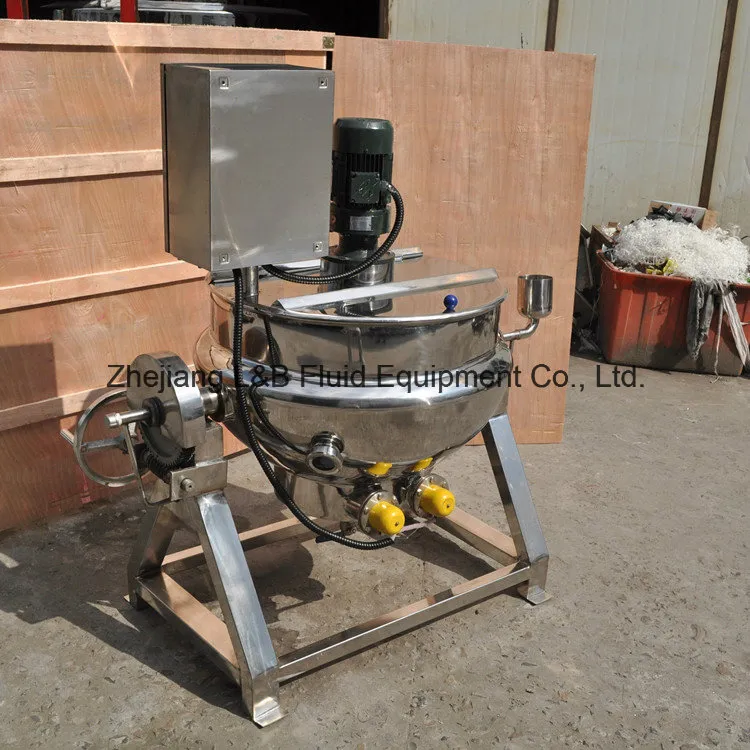

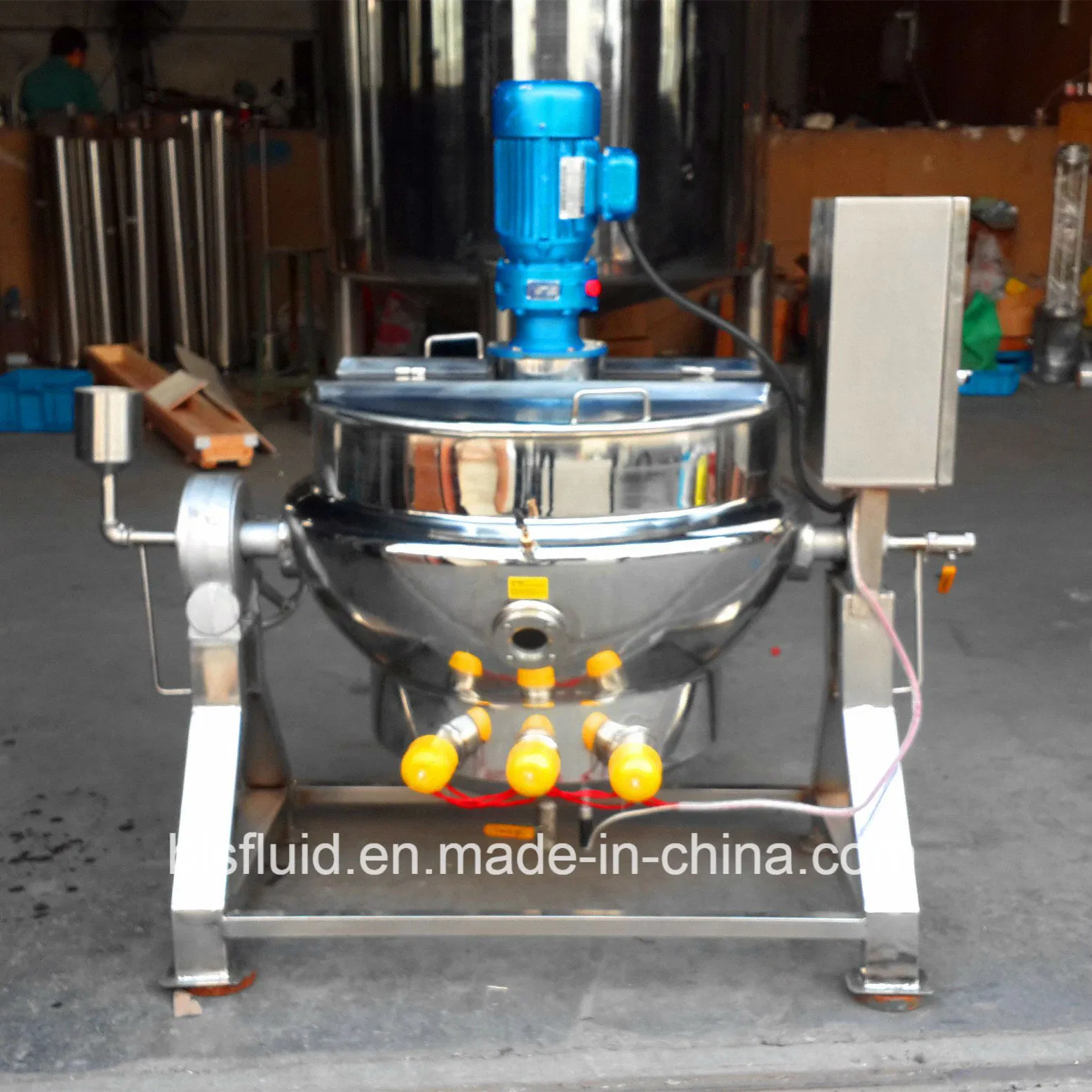

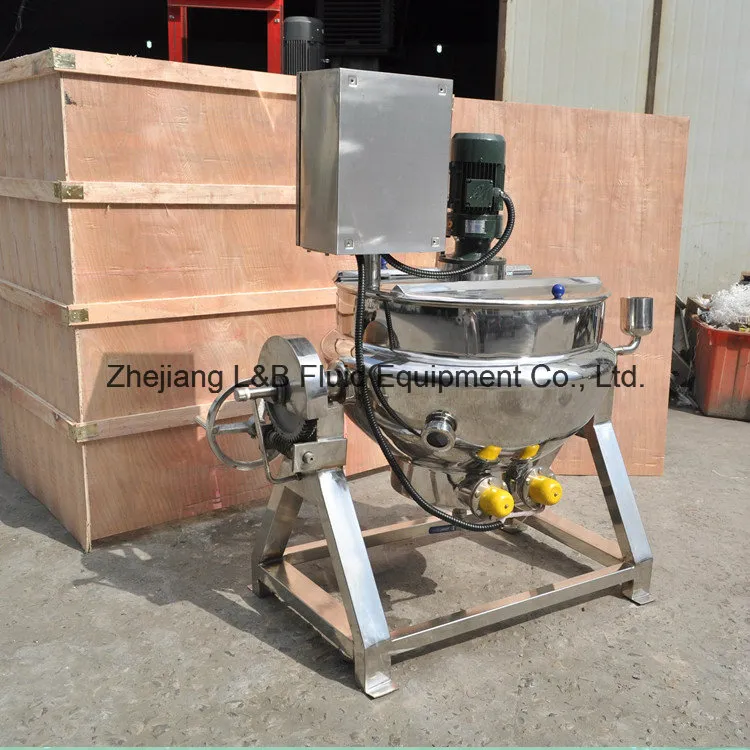

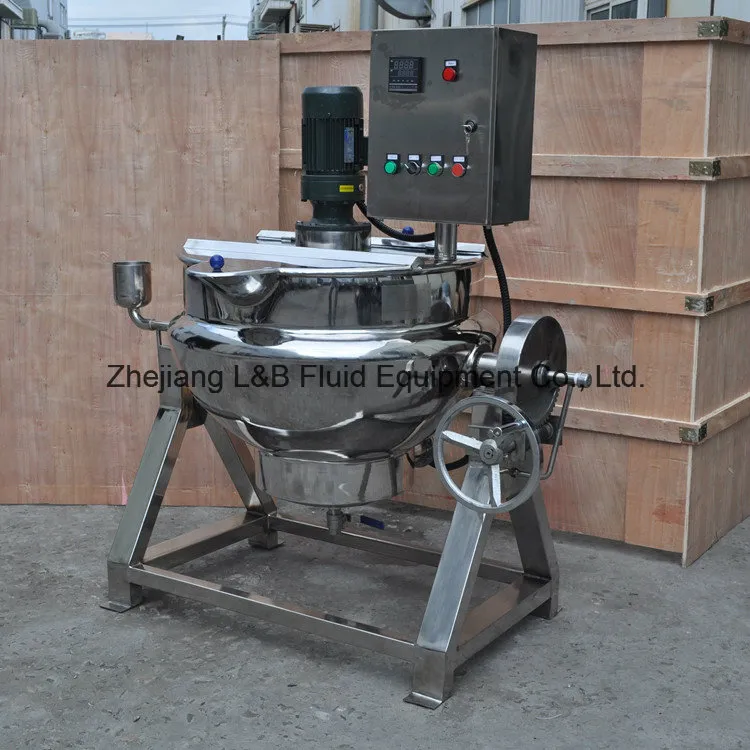

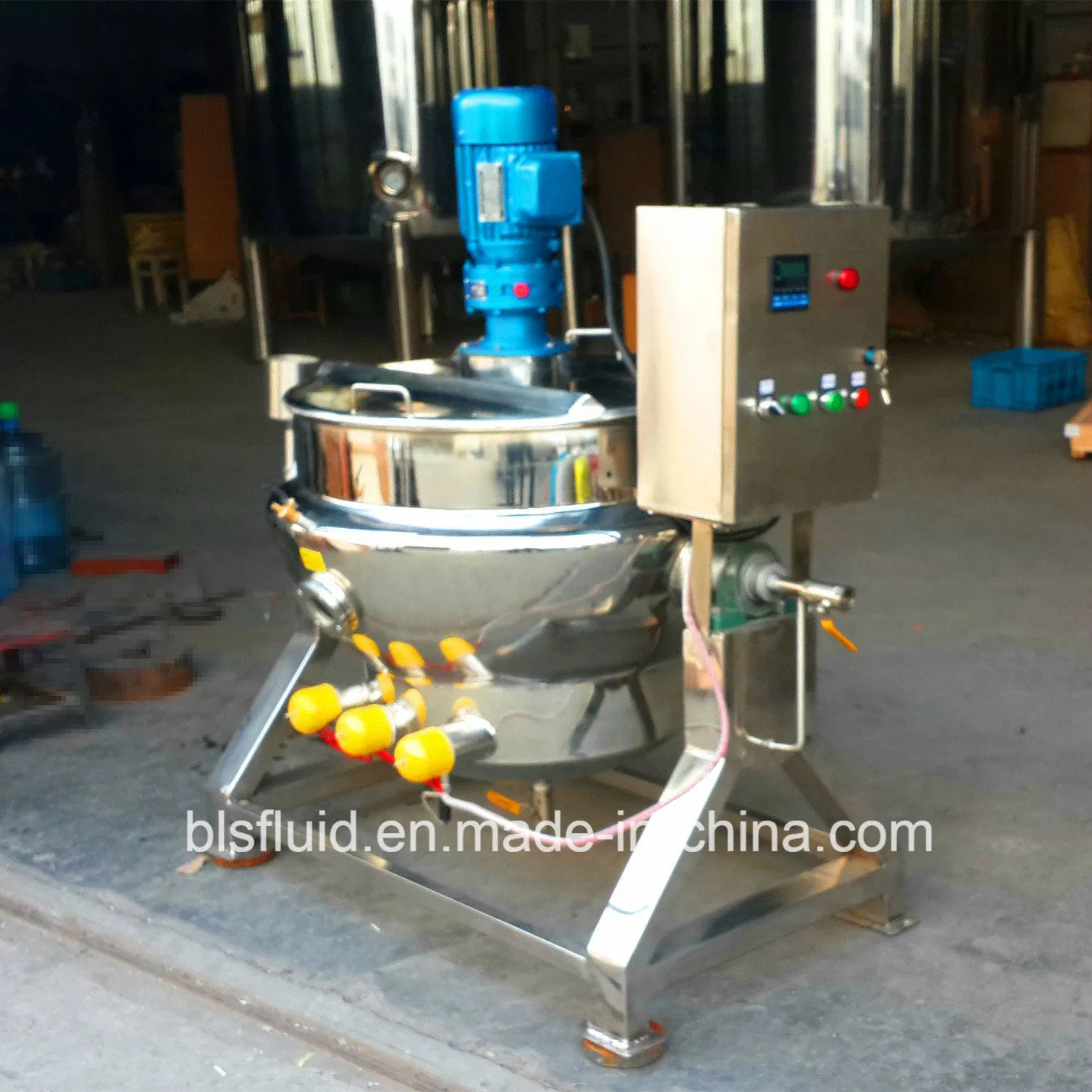

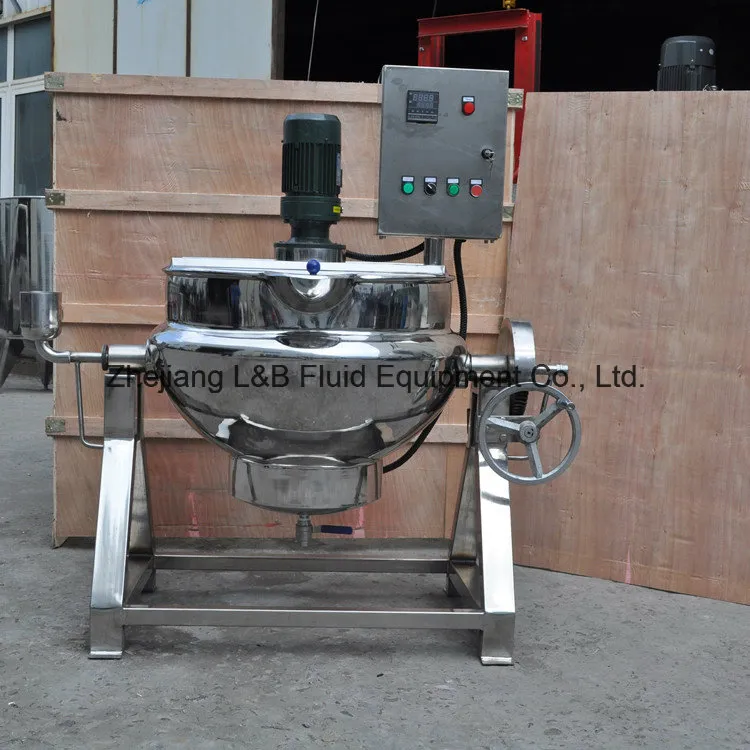

■ Product Display

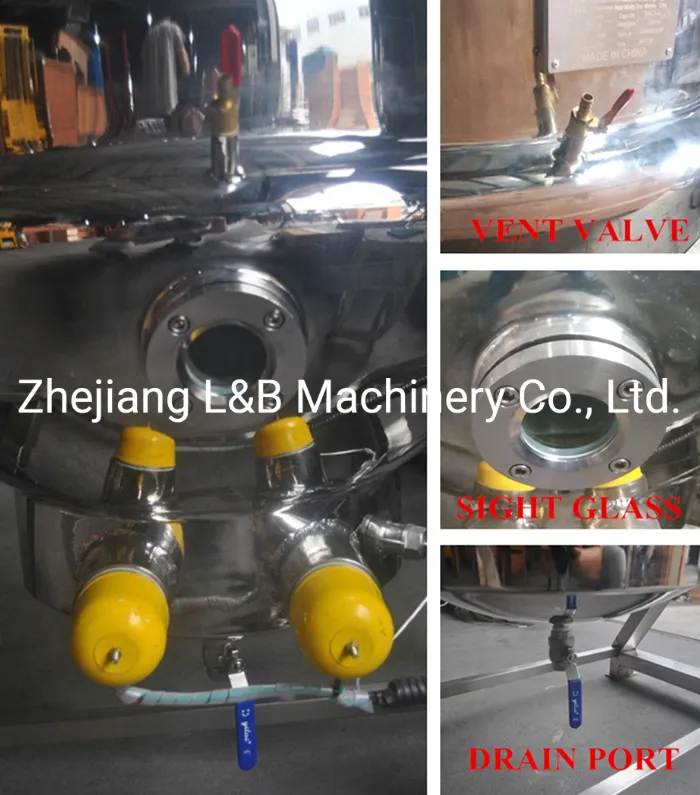

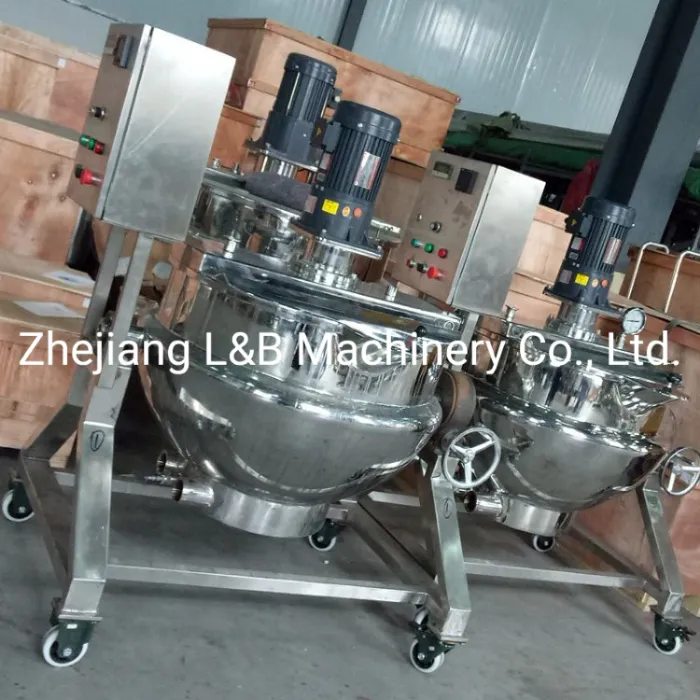

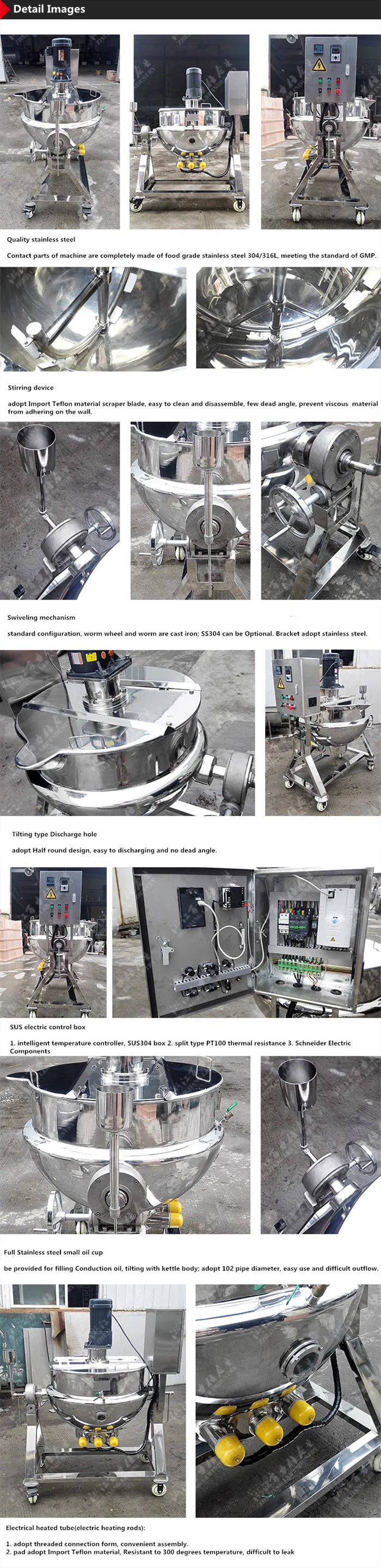

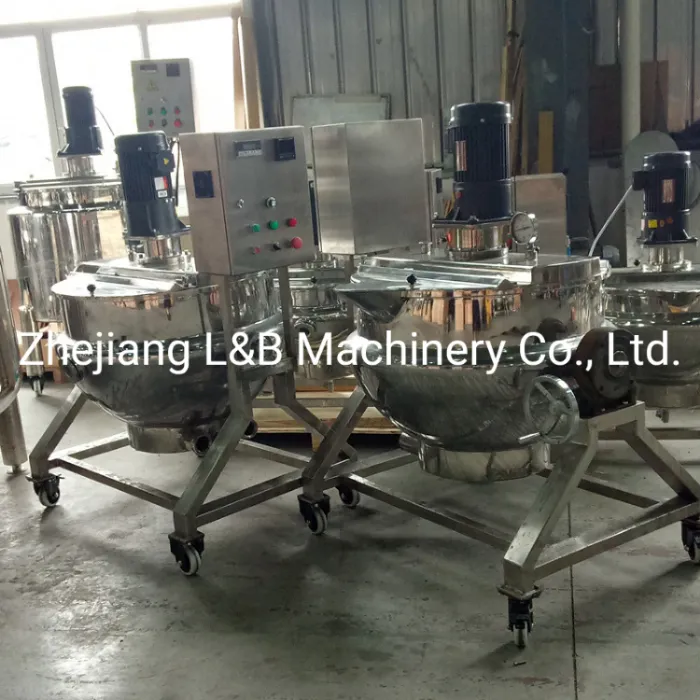

■ Detailed Components
■ Packaging & Professional Facility
■ FAQ
Q1: What are the primary materials used for these boilers?
We utilize high-grade SS304 or SS316L stainless steel, designed to meet strict GMP standards for food and pharmaceutical processing.
Q2: What heating options are available for the jacketed kettle?
The equipment can be configured for electric heating (using oil or water), steam heating, or gas heating depending on your facility requirements.
Q3: Can the boiler handle thick or viscous materials?

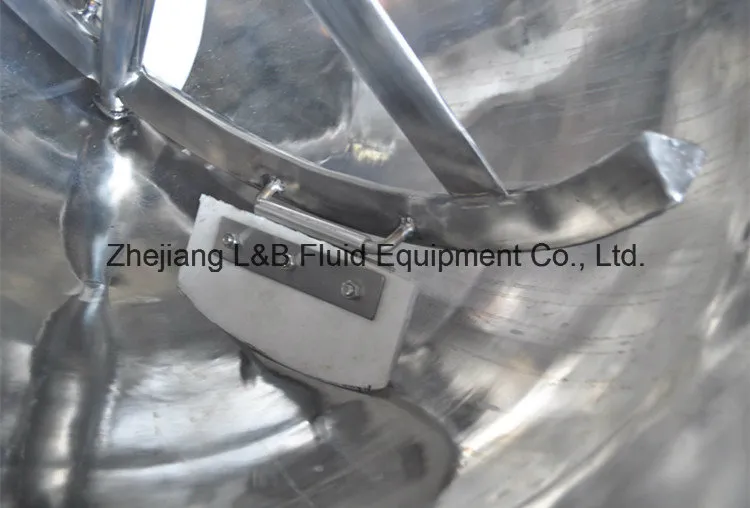

Yes, the agitator is equipped with a PTFE scraper to prevent material from sticking to the walls, making it ideal for thick substances in the food and cosmetic industries.
Q4: What is the standard delivery timeframe for an order?
Generally, production takes 3 to 4 weeks after receiving the advance payment. The specific time depends on the model complexity and order quantity.
Q5: Is every unit tested before it leaves the facility?
Yes, we conduct 100% testing on all goods before delivery to ensure performance, pressure stability, and safety standards are met.
Q6: What are the payment and delivery terms?
Standard terms include 30% deposit via T/T with the balance due before delivery. Available delivery terms include EXW, FOB, CIF, and DDU.
