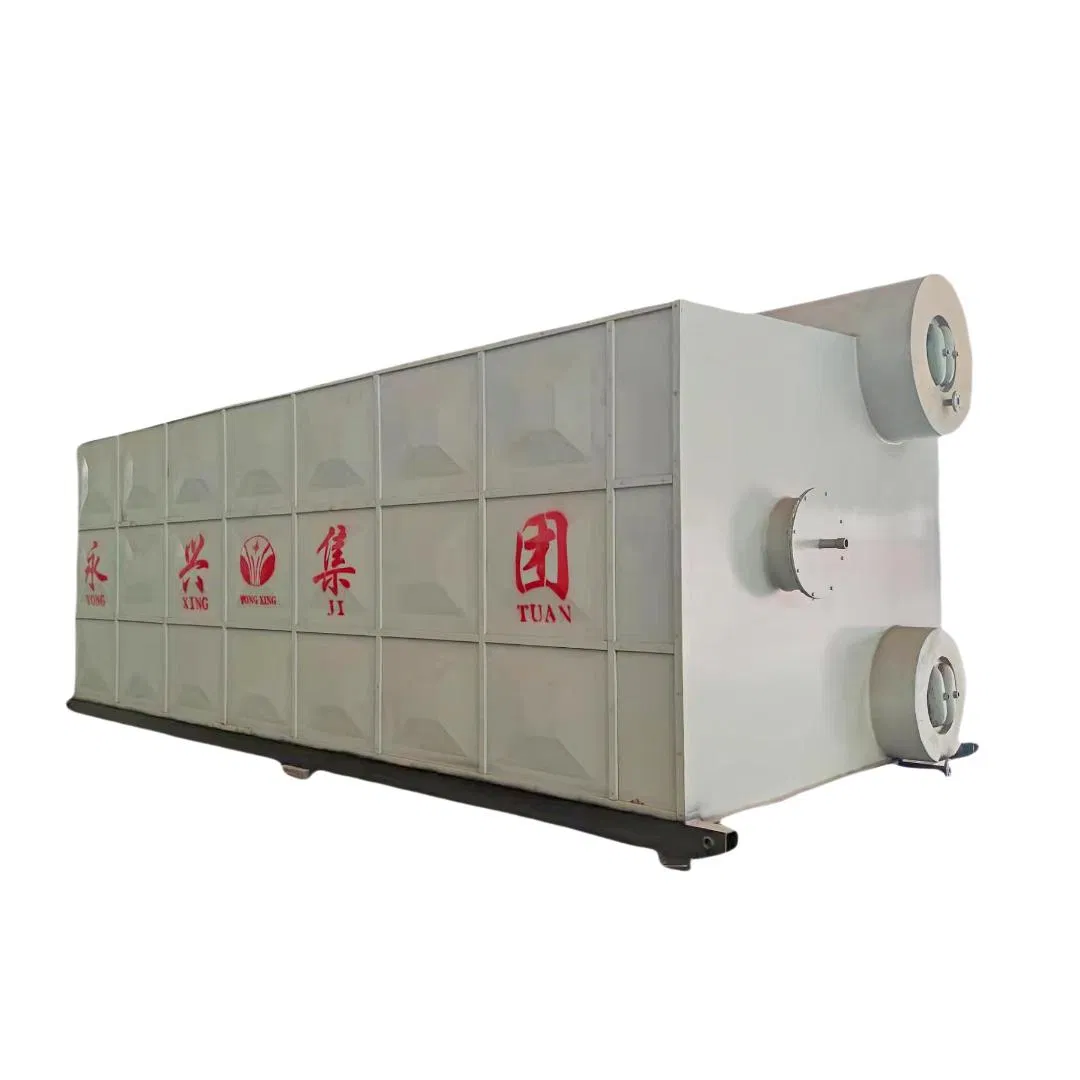

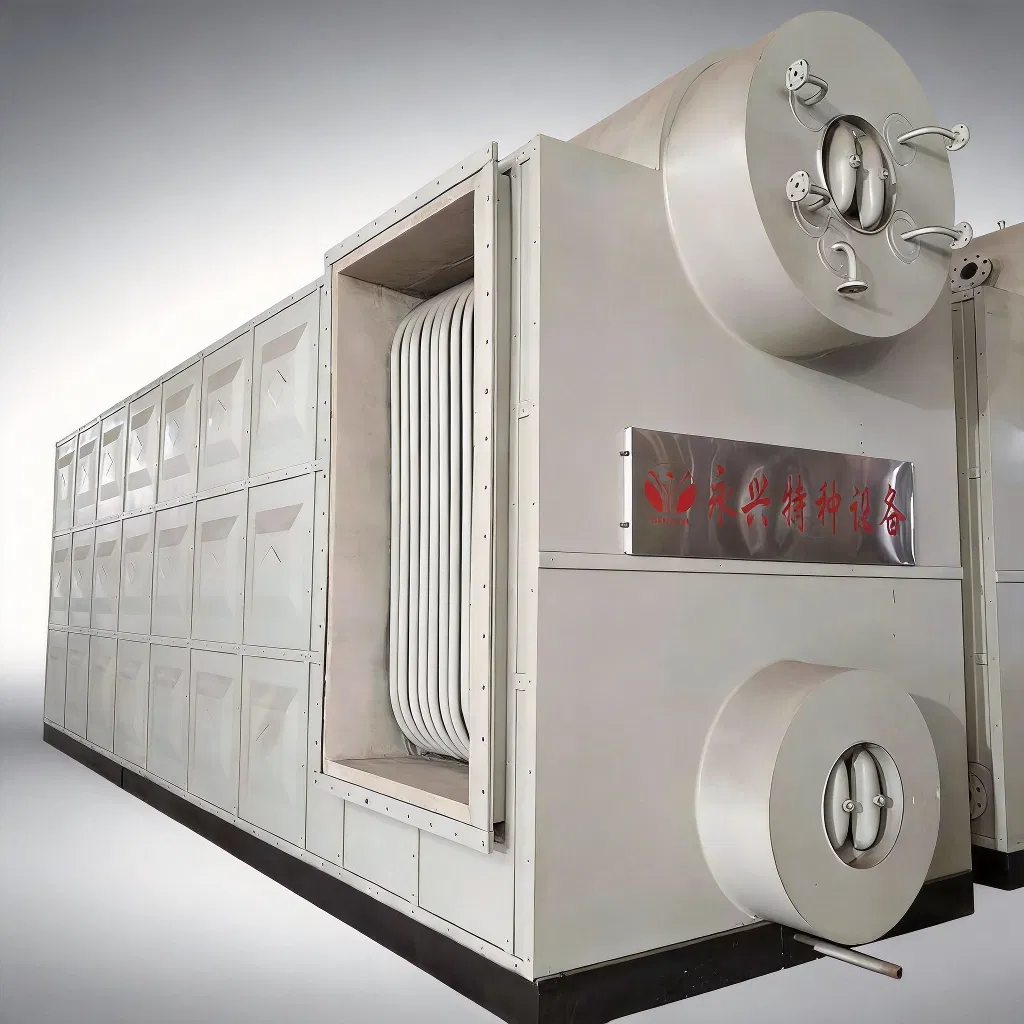

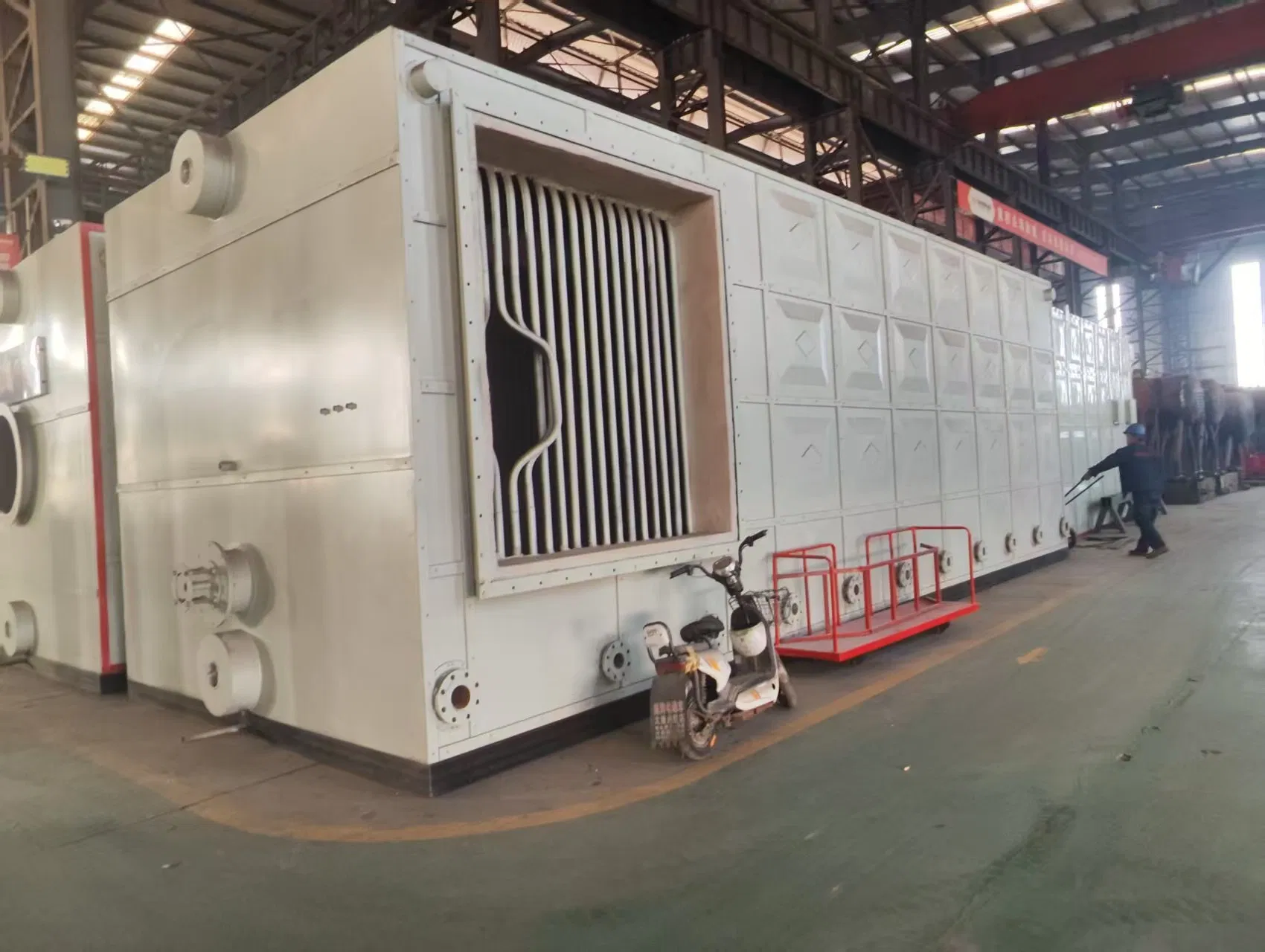

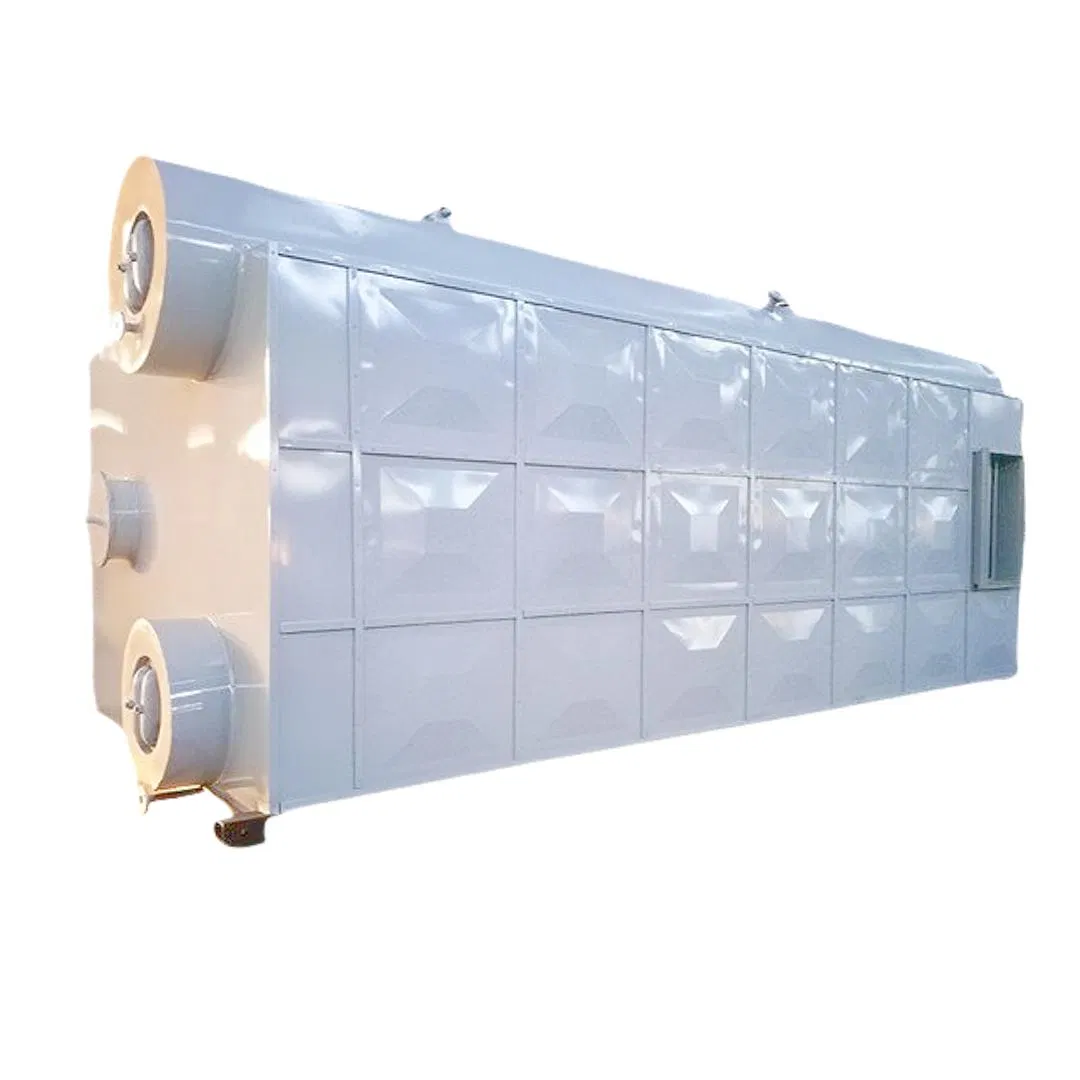

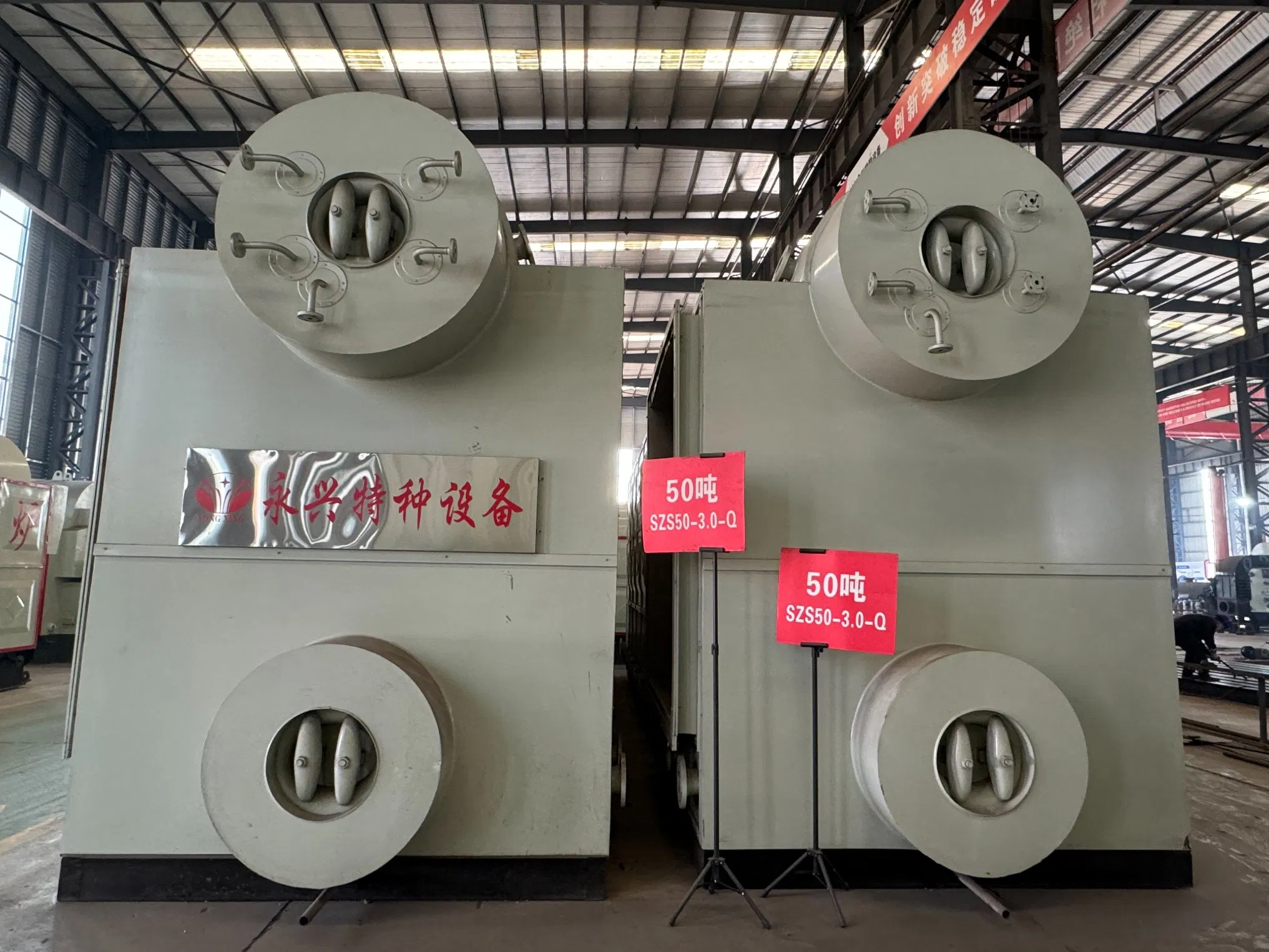

New-Type Double-Drum Industrial Diesel and Natural Gas Oil-Fired Steam Boiler

1 / 5

New-Type Double-Drum Industrial Diesel and Natural Gas Oil-Fired Steam Boiler

Customization:	Available
Function:	Steam Boilers
Fuel:	Oil/Gas Fired

Send Inquiry

Product Description

Basic Information

Model NO.

SZS

Installation

Packaged Boiler

Structure

Water Tube

Media

Hot Water

Water Circulation

Natural Circulation

Drum Placement

Horizontal Boiler

Pressure

1.25-3.82MPa

Manufacturing Level

Burning Style

Chamber Combustion

Usage

Industrial, Power Station

Material

Stainless Steel

Features

New-Type Double-Drum

Product Introduction

SZS gas/oil double-drum horizontal type chamber combustion boiler consists of upper and lower drums, membrane water wall, burner, superheater, convection pipe bundle, condenser, and dirt separator. The furnace water wall and convection flue adopt a membrane wall structure, eliminating the need for refractory bricks.

This boiler is highly efficient, environmentally friendly, and features a short installation cycle with simple operation and perfect protection systems. It is suitable for industrial heating and small power station supply needs.

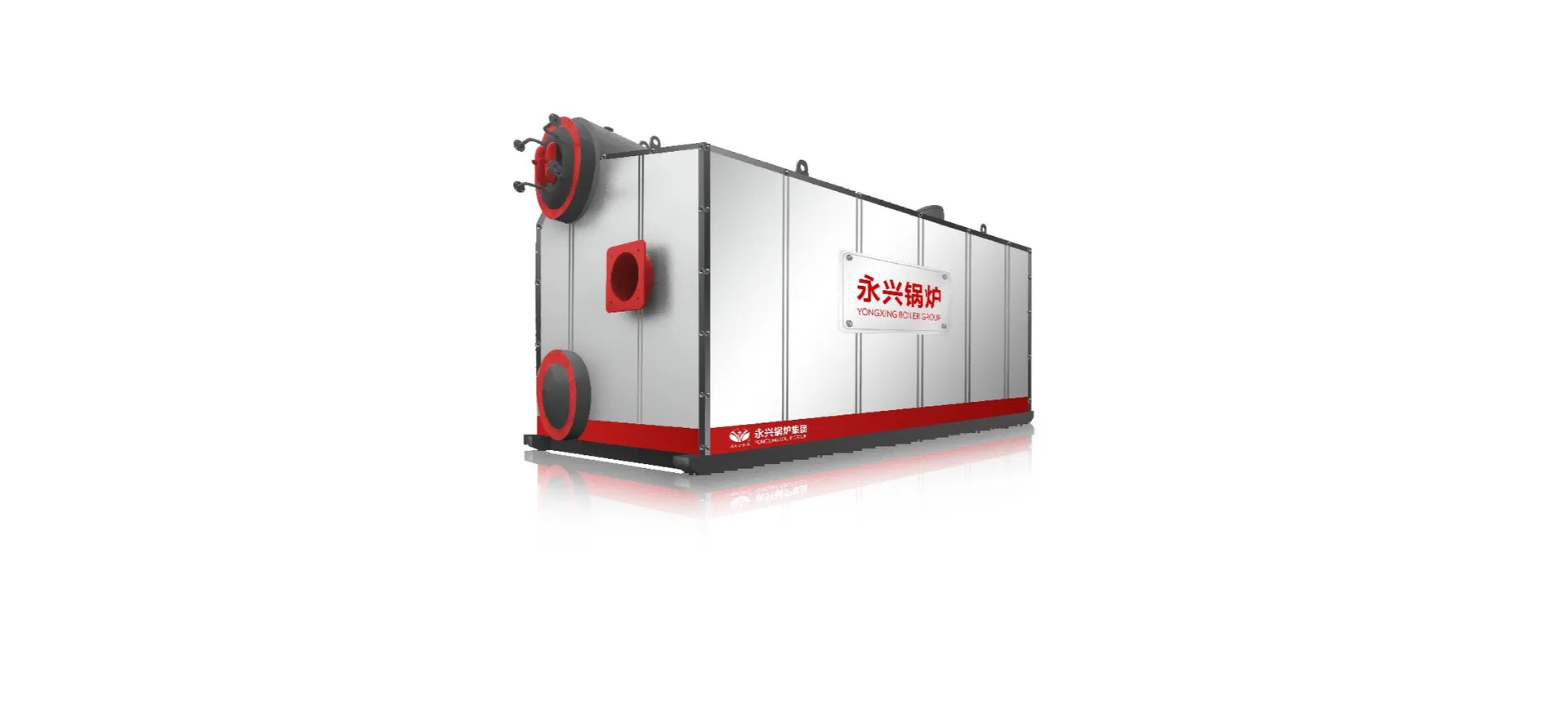

Technical Specifications

Boiler Model	SZS10	SZS15	SZS20	SZS25	SZS30	SZS35
Rated Steam Capacity (T/H)	10	15	20	25	30	35
Rated Steam Pressure (Mpa)	1.25 / 1.6 / 2.5 / 3.82
Thermal Efficiency	>98%
Fuel Type	Diesel / Natural Gas / Heavy Oil / LPG / City Gas
Natural Gas Consumption (Nm3/h)	660	987	1316	1660	1981	2630

Service & Advantages

⚡

Fast Delivery

Boilers under 15 tons delivered in 15 days.

🎧

24hrs Online

Technical consultation response within 30 minutes.

🛠️

Full Service

R&D, custom design, and EPC project support.

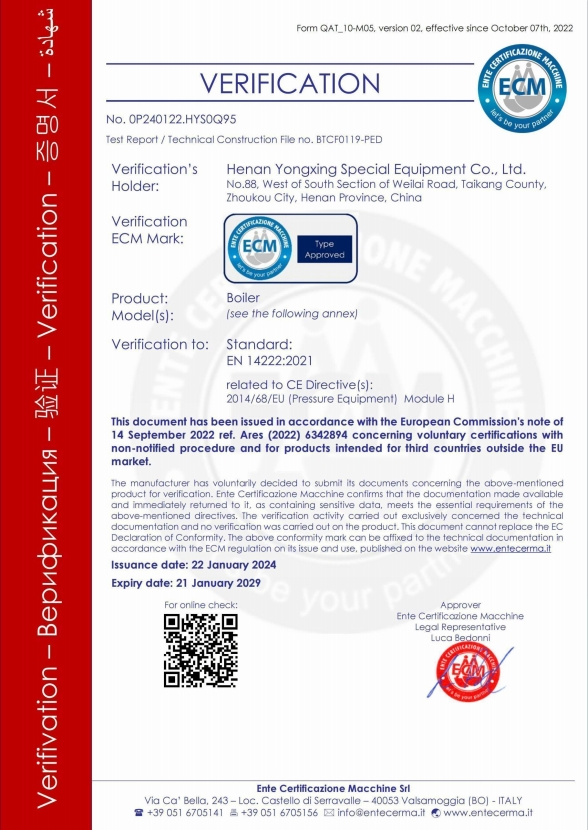

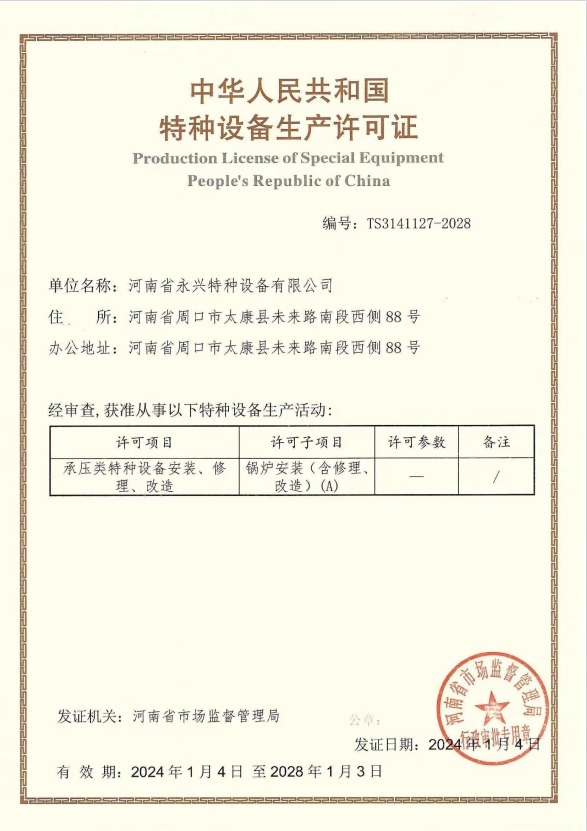

Qualifications & Gallery

Frequently Asked Questions

What are the primary applications for SZS series boilers?

SZS series boilers are ideal for large-scale industrial heating, textile manufacturing, chemical processing, food production, and providing heat for small power stations.

What is the thermal efficiency of the SZS oil/gas boiler?

Thanks to the membrane wall structure and the application of economizers and condensers, the thermal efficiency can exceed 98%.

What fuels can be used with this boiler?

The SZS series is designed for chamber combustion and supports Light Diesel Oil, Natural Gas, Heavy Fuel Oil, Liquefied Petroleum Gas (LPG), and City Gas.

How long does it take for the boiler to be delivered?

Standard boilers under 15 tons are delivered in 15 days, 15-25 ton units in 20 days, and units over 25 tons in approximately 35 days.

What international standards do these boilers comply with?

The equipment is manufactured according to Grade A standards and complies with ISO9001 quality management systems and CE certification requirements for global reliability.

What maintenance is required for daily operation?

Operators should regularly check water levels, pressure, and temperature. Internal scale and flue pipe ash should be cleaned periodically to ensure optimal performance.
