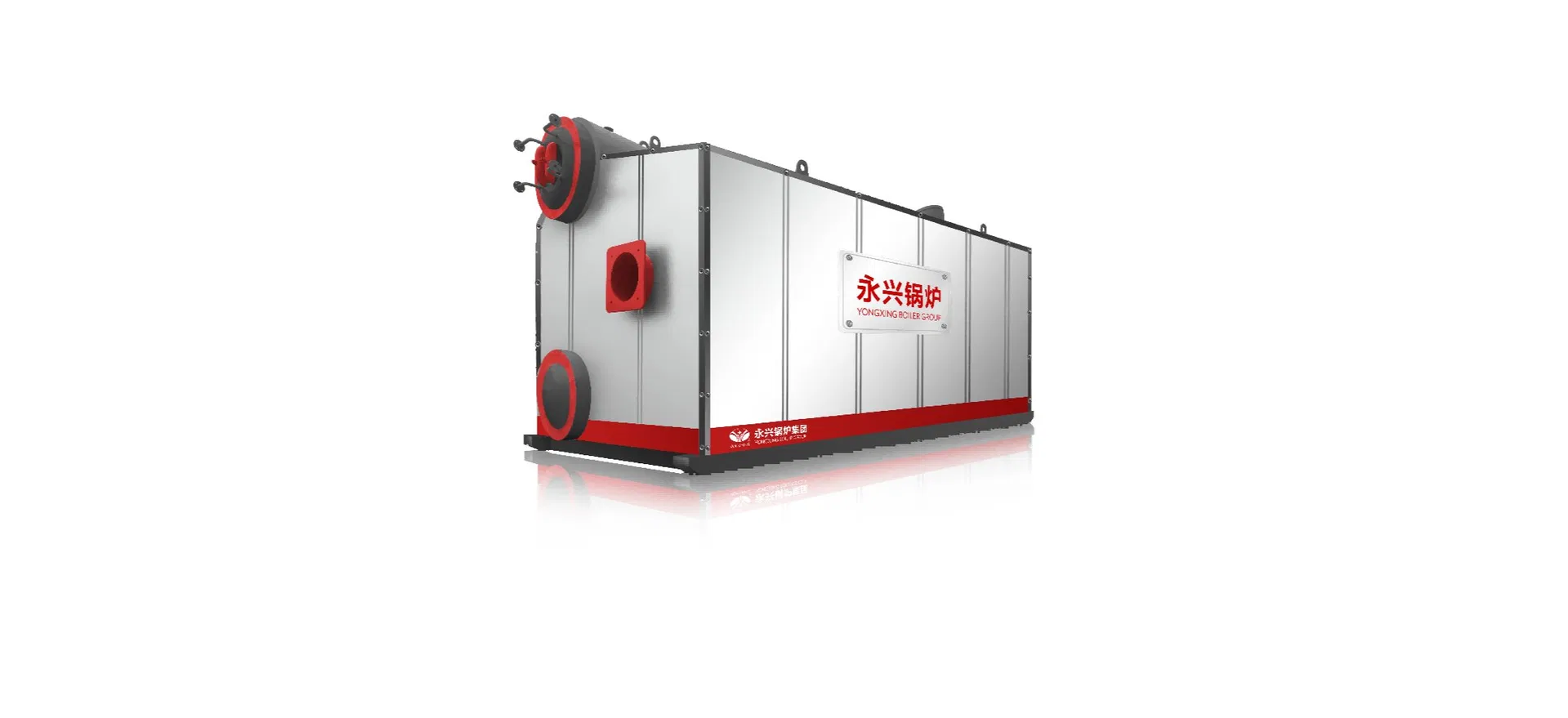

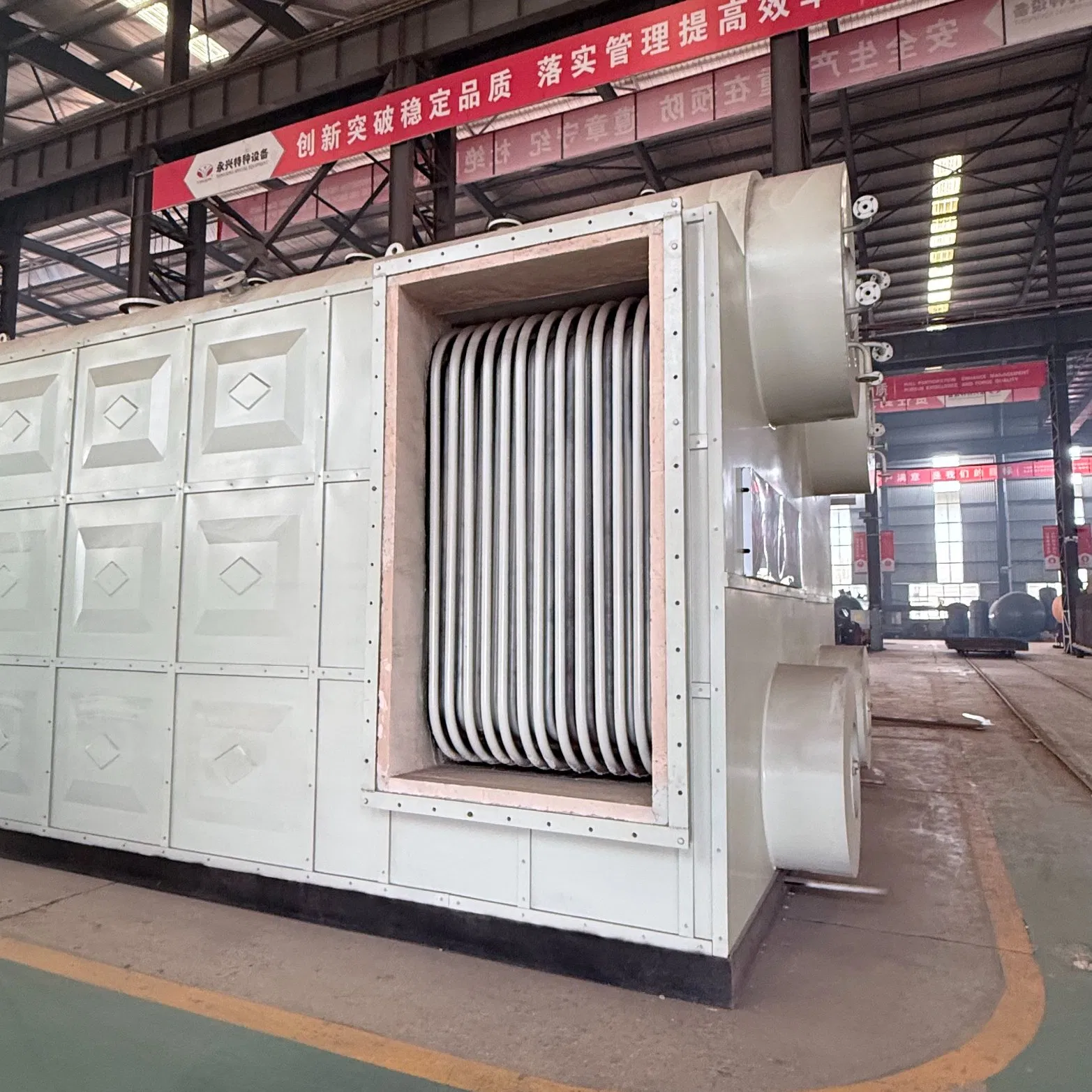

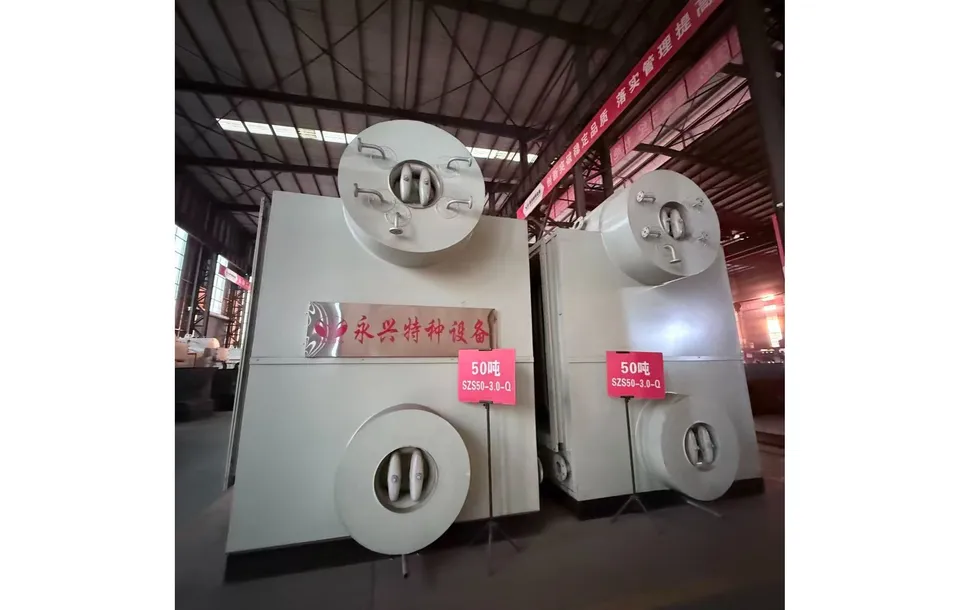

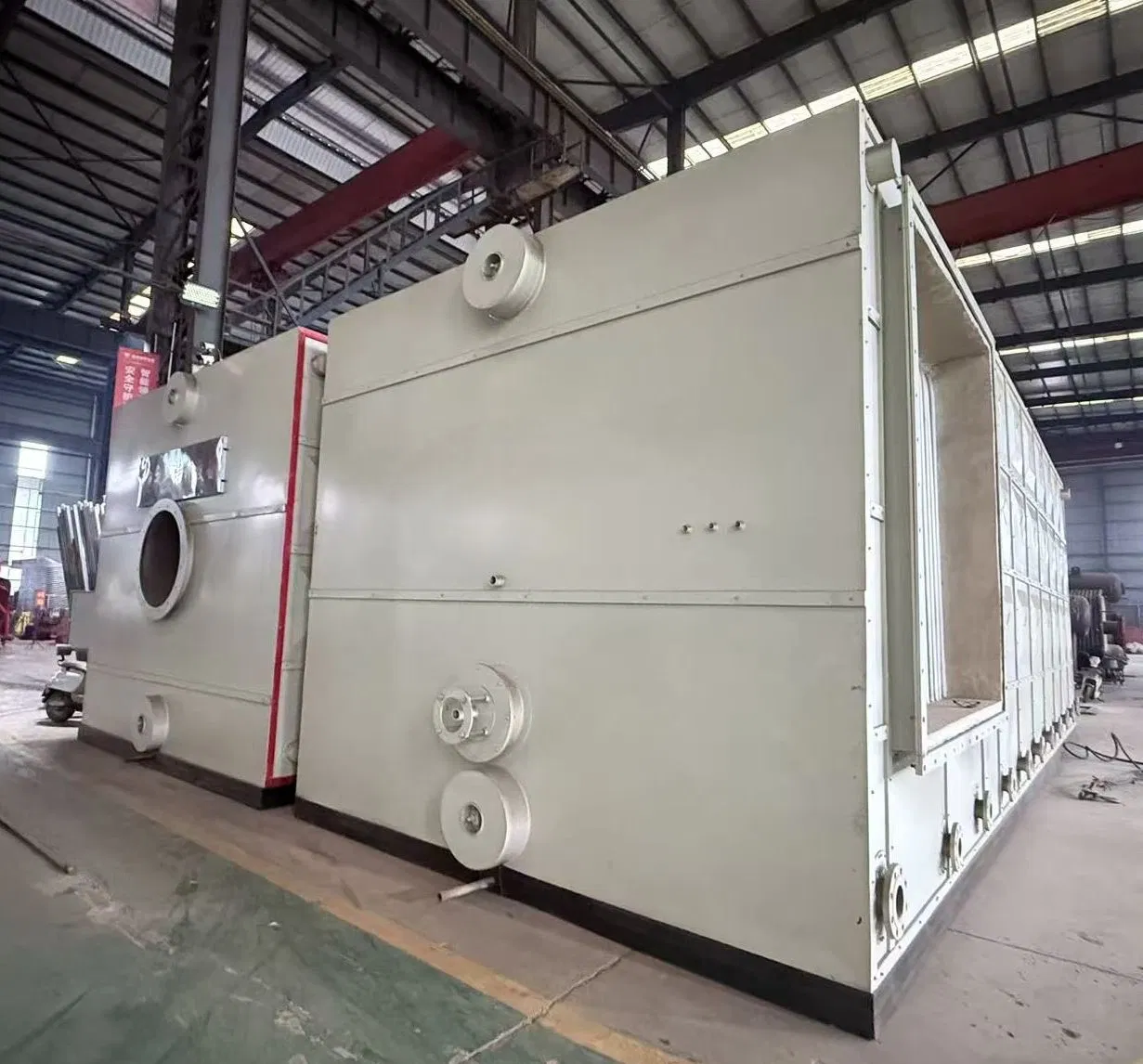

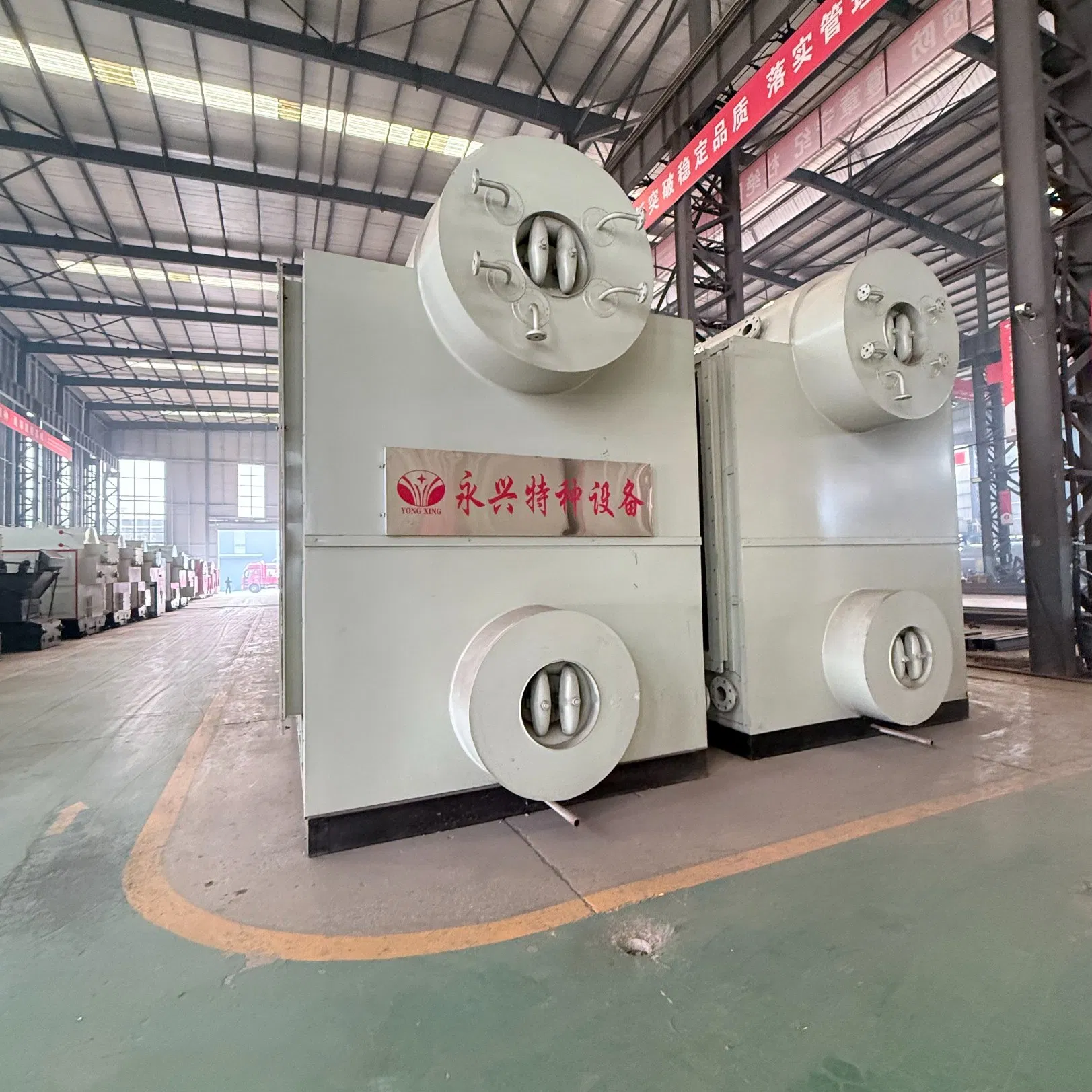

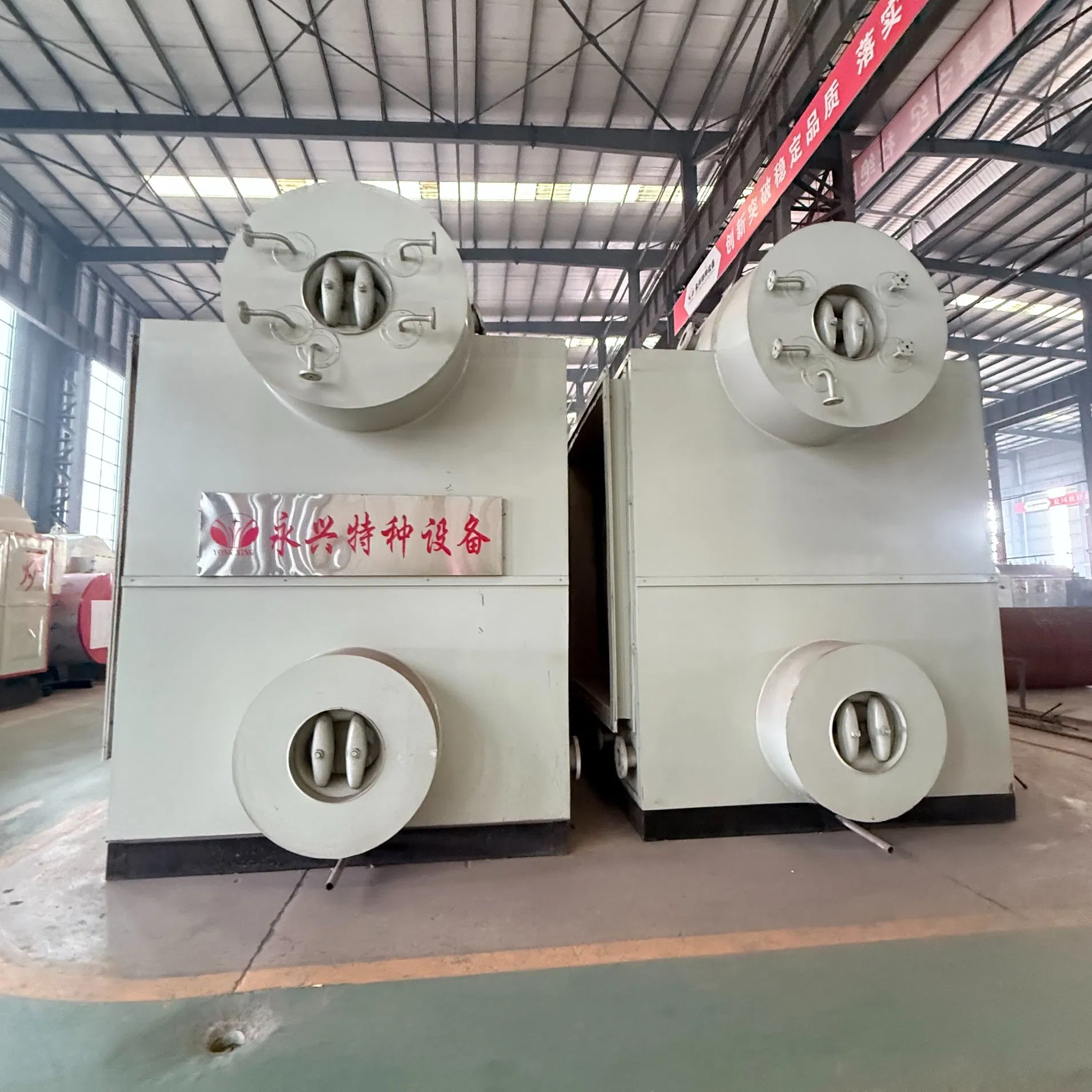

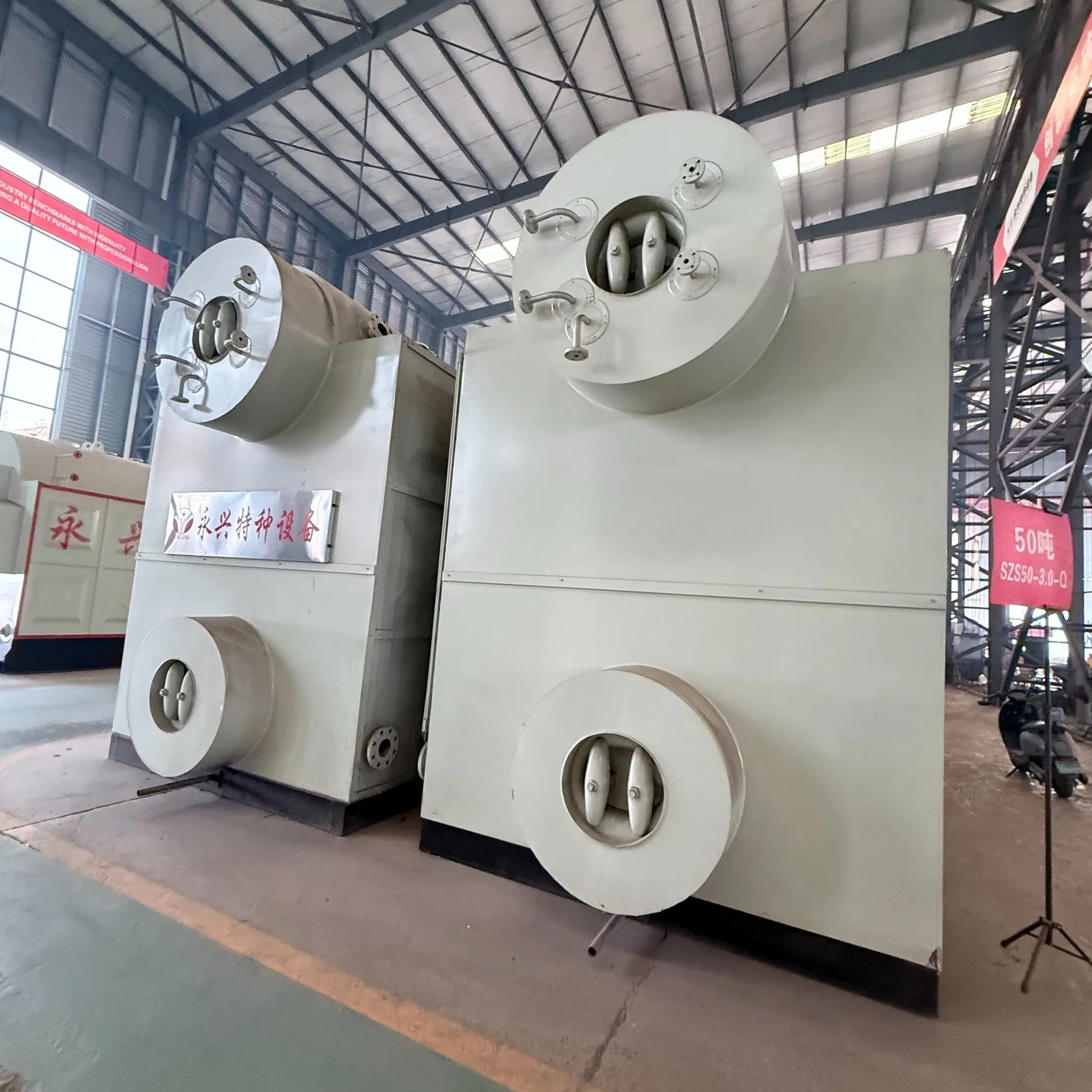

SZS gas/oil double-drum horizontal type chamber combustion boiler consists of upper and lower drums, membrane water wall, burner, superheater, convection pipe bundle, condenser and dirt separator. Its furnace water wall and convection flue adopts membrane wall structure, saving refractory bricks. It offers energy-saving, high efficiency, and environmental friendliness.
It is a quick-assembled or bulk water tube boiler with convection tube bundle on the left and chamber on the right. The application of the economizer and condenser reduces the exhaust gas temperature and improves the thermal efficiency, significantly reducing fuel consumption.
(Custom configurations available upon request)
| Boiler Model | SZS10 | SZS15 | SZS20 | SZS25 | SZS30 | SZS35 | ||
|---|---|---|---|---|---|---|---|---|
| Rated Steam Capacity | T/H | 10 | 15 | 20 | 25 | 30 | 35 | |
| Rated Steam Pressure | Mpa | 1.25 / 1.6 / 2.5 / 3.82 | ||||||
| Rated Steam Temperature | ℃ | 194 / 204 / 226 / 450 | ||||||
| Thermal Efficiency | % | >98% | ||||||
| Fuel Type | Light Diesel Oil / Natural Gas / Heavy Fuel Oil / LPG / City Gas | |||||||
| Consumption | Diesel Oil | kg/h | 618 | 927 | 1256 | 1545 | 1856 | 2470 |
| Natural Gas | Nm3/h | 660 | 987 | 1316 | 1660 | 1981 | 2630 | |
We provide industrial boiler solutions covering 8 categories and 23 series, including biomass, oil-fired, gas-fired, and electric heating boilers. Our products are widely used in chemical, textile, and food processing industries.
